i20L

Available Colors

$1.00

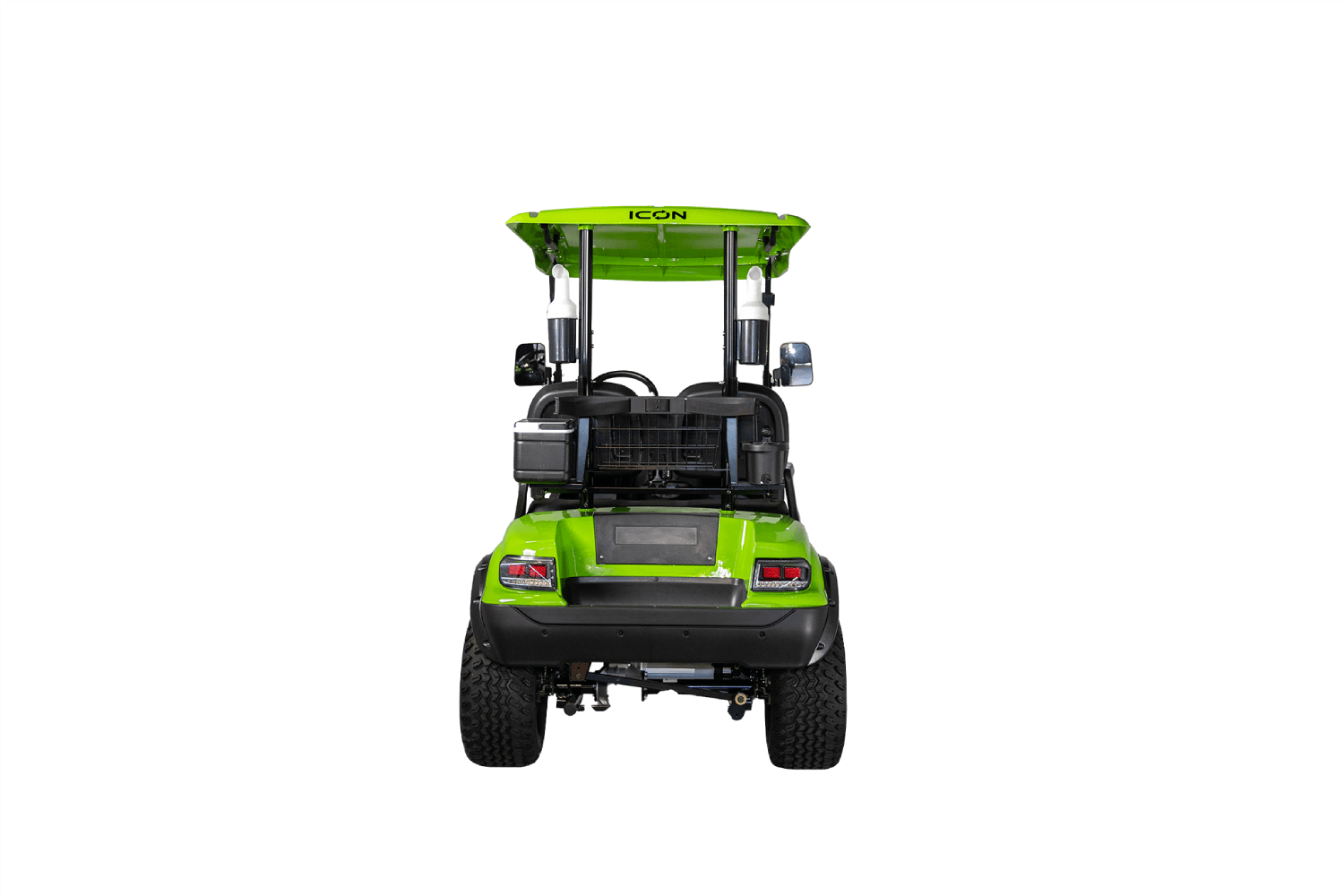

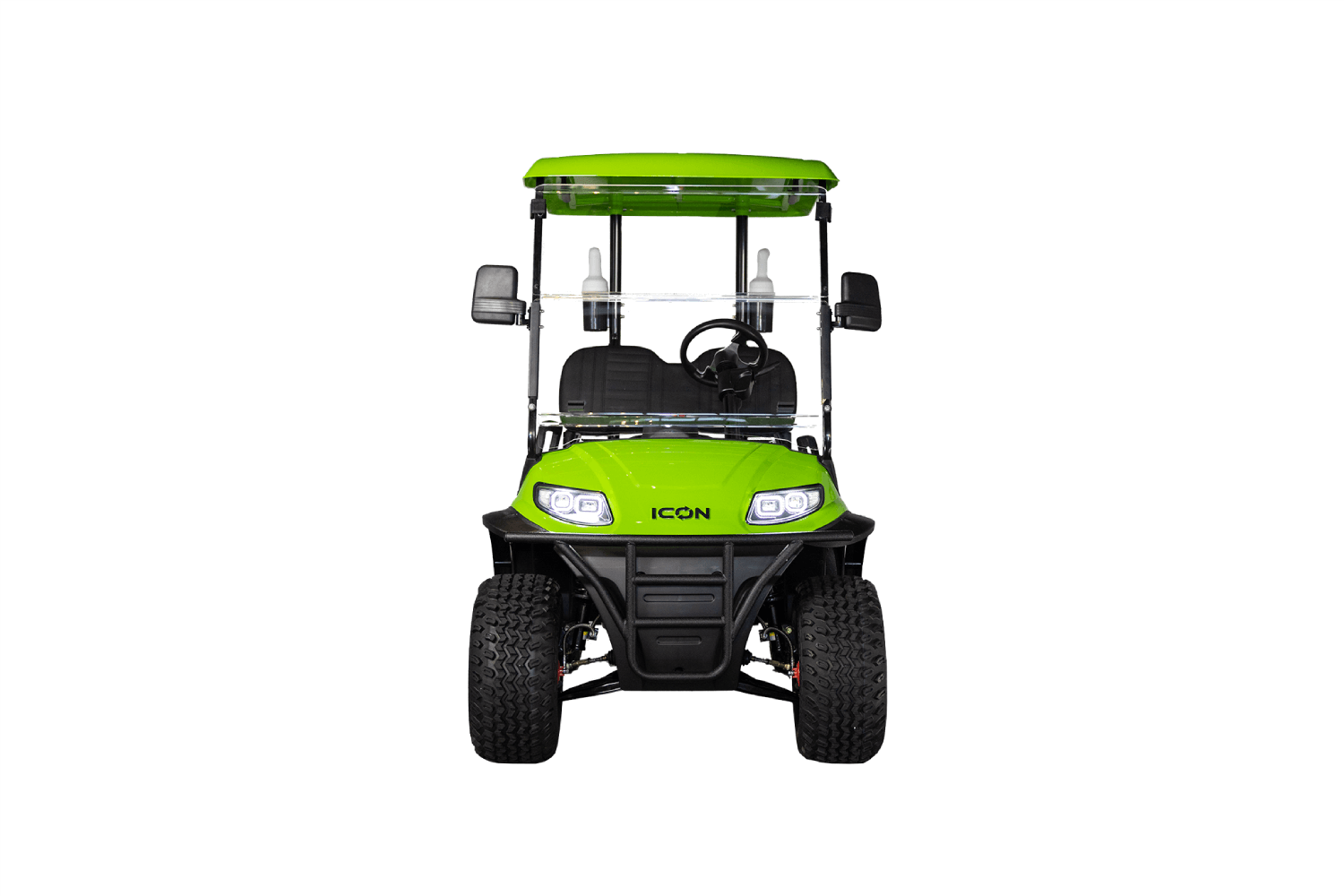

Up your game with this lifted two-seater ICON i20L golf cart!

FIND A DEALER
KEY FEATURES
  • 48V ICON 5kW AC motor and controller
  • (6) 8V sealed maintenance-free AGM batteries
  • 12″ aluminum wheels
  • Durable front and rear bumpers
SKU: N/A Categories: ,

Description

i20L

Description

Up your game with this lifted two-seater ICON i20L golf cart! The lifted i20’s are loaded with class-leading features like 12″ aluminum wheels, lights, turn signals, high-speed rear ends, functional front and rear bumpers, painted rooftops, horns, digital gauges, and more.

The ICON i20L comes standard with (6) 8V Sealed Maintenance-Free AGM batteries, an upgraded 48V ICON 5kW 3 Phase High Torque motor, and a controller for ICONIC performance! Optional upgrade to 51V 105AH Eco Lithium Battery now available!

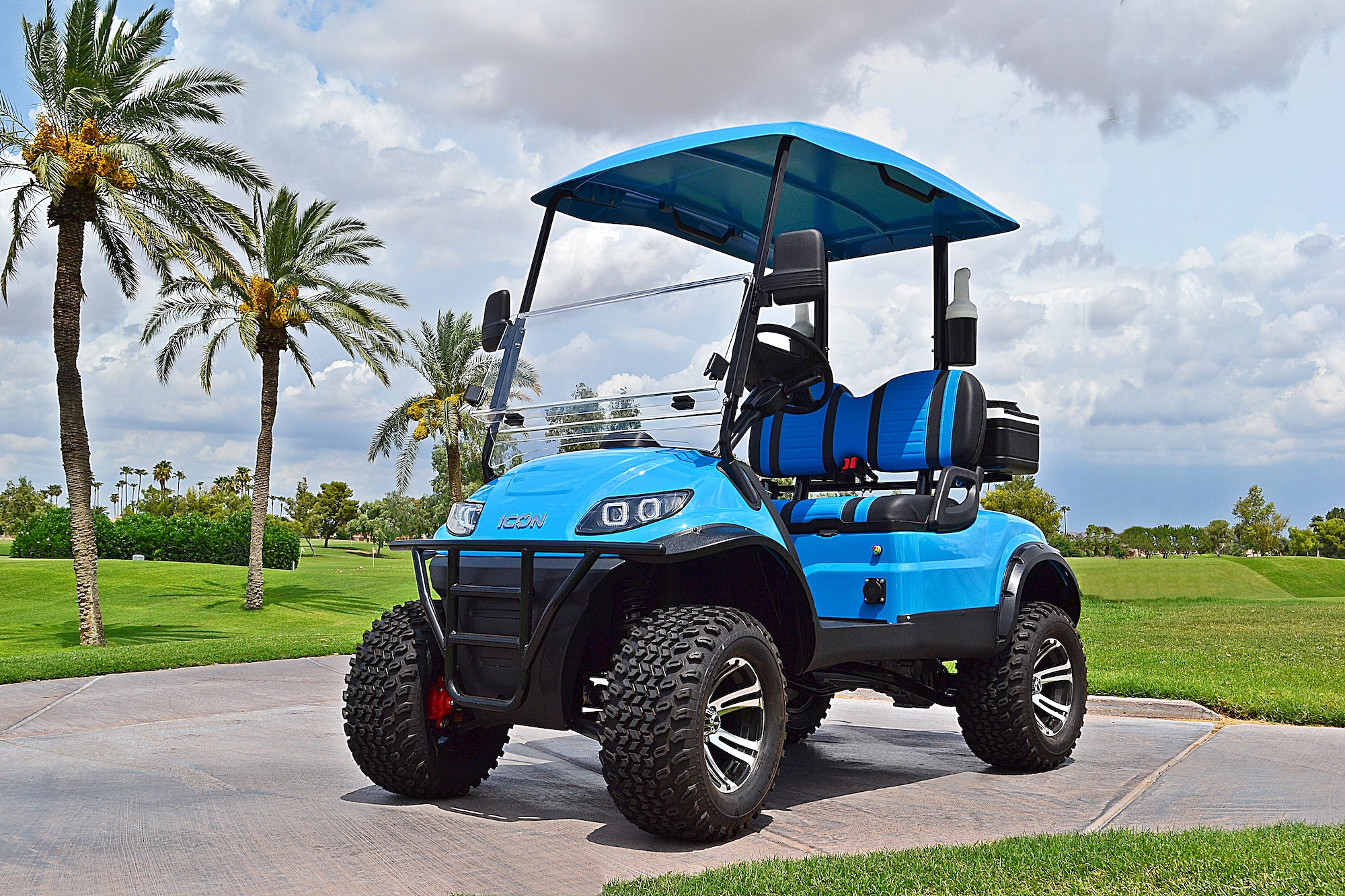

Electrical Systems

Controller
450A ICON Controller
Motor
48V ICON 5kW 3 Phase High Torque Motor
Charger
ICON 48V Onboard Charging System with Body Mounted Charge Indicator
Batteries
(6) 8V Sealed Maintenance-Free AGM Batteries, or an optional upgrade to 51V 105AH Eco Lithium Battery now available!
ICON Golf Cart i20L Features

Specs

Weight
1278 lbs
Capacity
2 People
Overall Dimensions LxWxH
101inx53inx82in
Colors
White, Black, Sangria, Orange, Purple, Torch Red, Champagne, Yellow, Lime Green, Forest Green, Caribbean Blue, Silver, Indigo Blue

Body Configuration

Windshield
Foldable Acrylic/Optional DOT Acrylic
Roof
Innovative air deflecting design with full high-strength aluminum frame
Body
Injection Molded Thermoplastic that is both stylish and resilient to outside damage
Mirrors
Fully Adjustable and Foldable
Floor
High-Density Polyethylene molded for extra strength and toughness with rubber floor mat
Wheels
12" Machined Face Aluminum with Powder Coated Accents
Tires
23×10.5-12 4 Ply Nylon Cord
Front Suspension
Macpherson Style Fully Independent Coil Over Shock
Rear Suspension
Solid Axle Coil Over Shock and Stabilizing Bar
Drivetrain
14:1 High Speed Rear Axle
Chassis
Tubular Powder Coated Steel Frame
Instrumentation

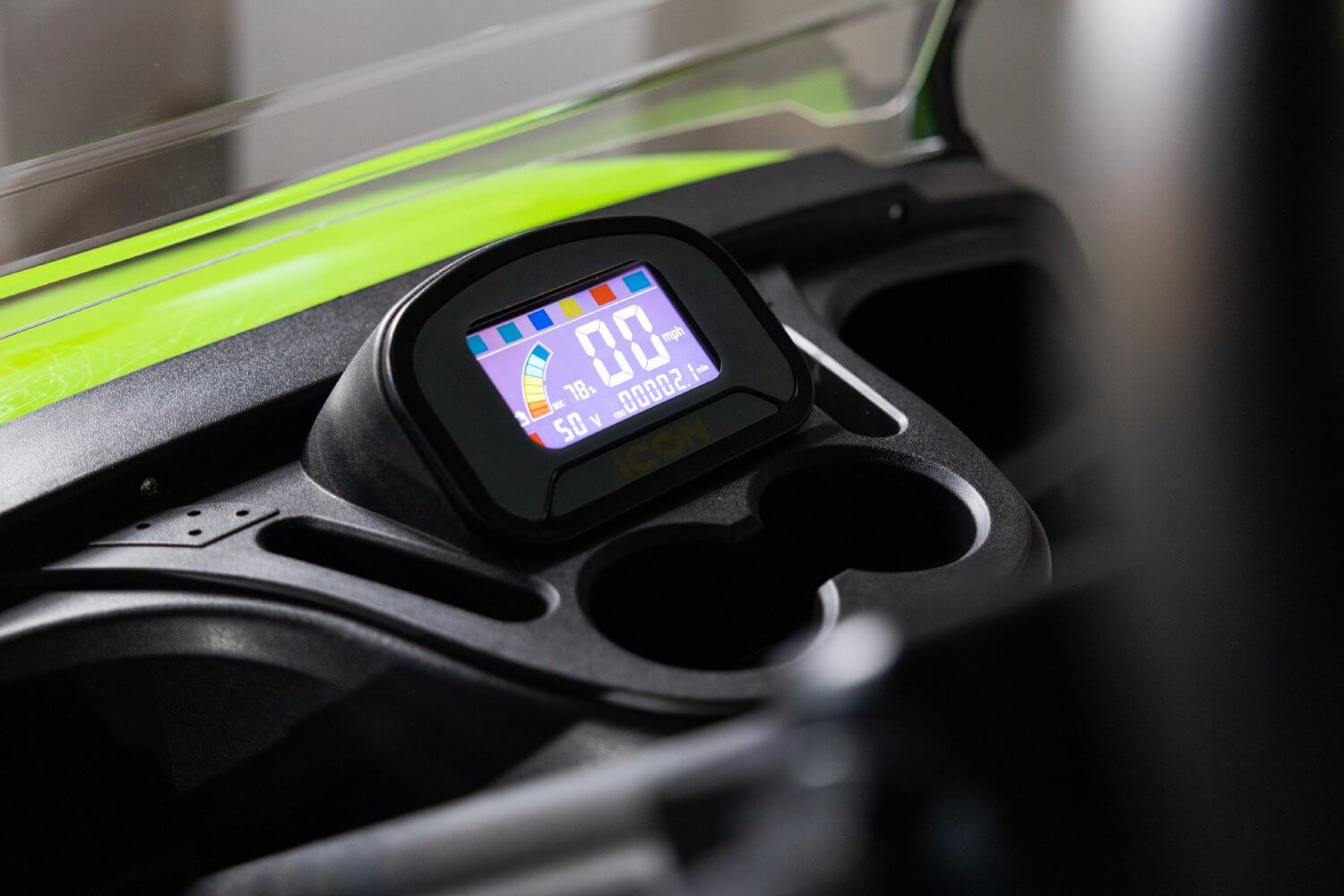

Fully Integrated Digital Instrument Cluster
Lighting and Signals

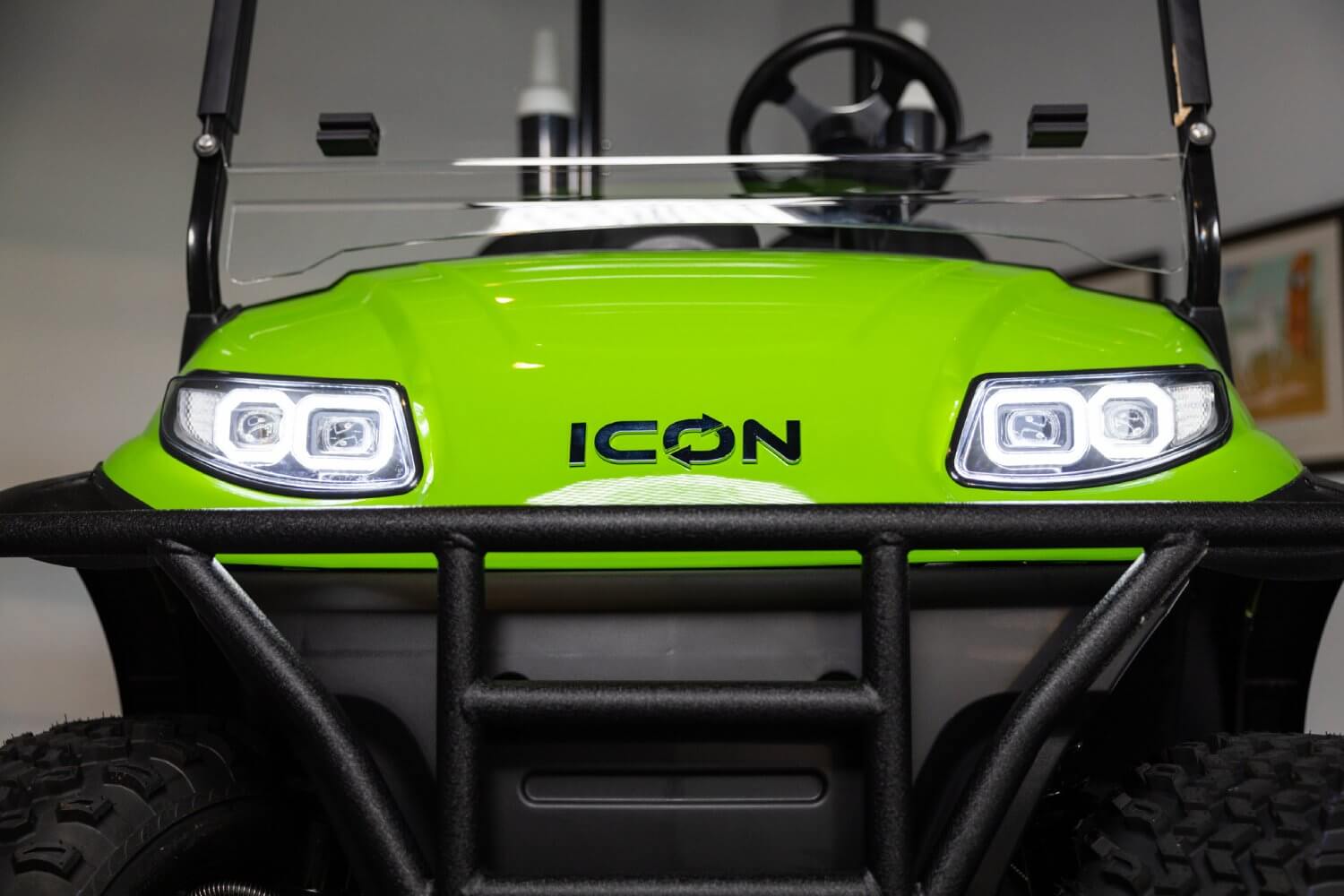

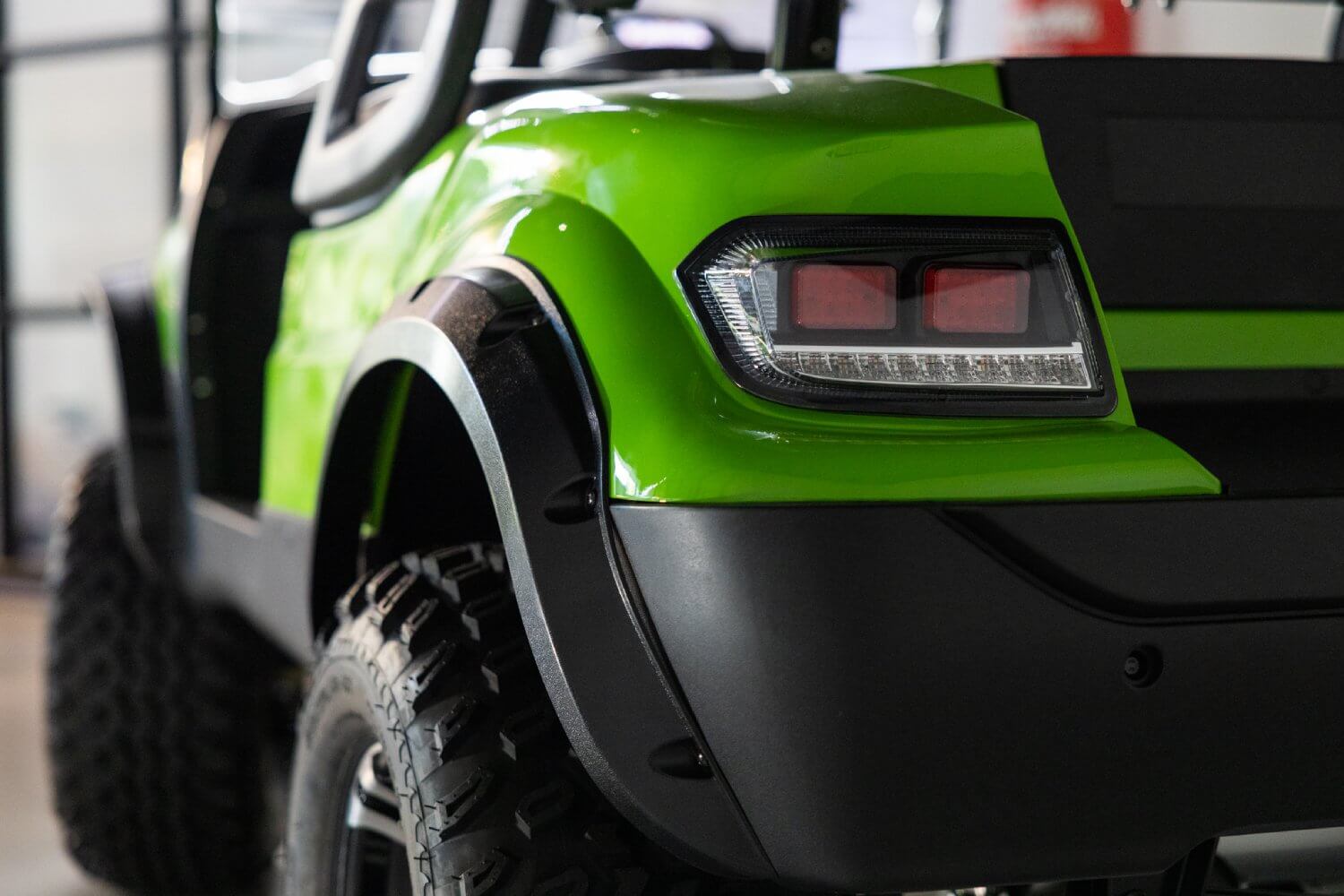

Single Combination Switch for LED Projector Hi & Lo Beam Headlights, LED Signal Lights, Taillights, and Horn
Safety Restraint
Side Hip Restraint & Retractable Seat Belts
Braking System

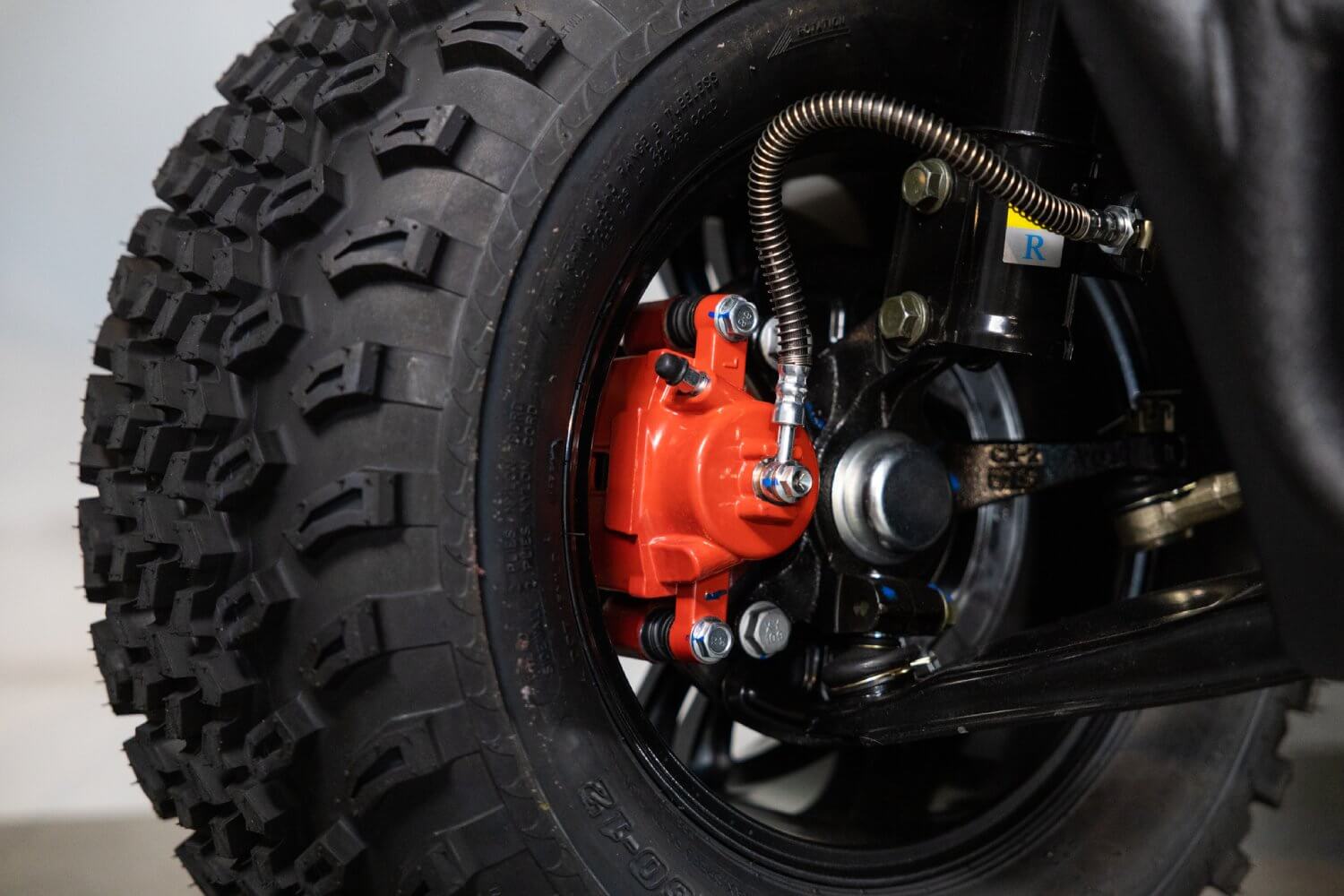

Four Wheel Disc Brakes and Electromagnetic Parking Brake System

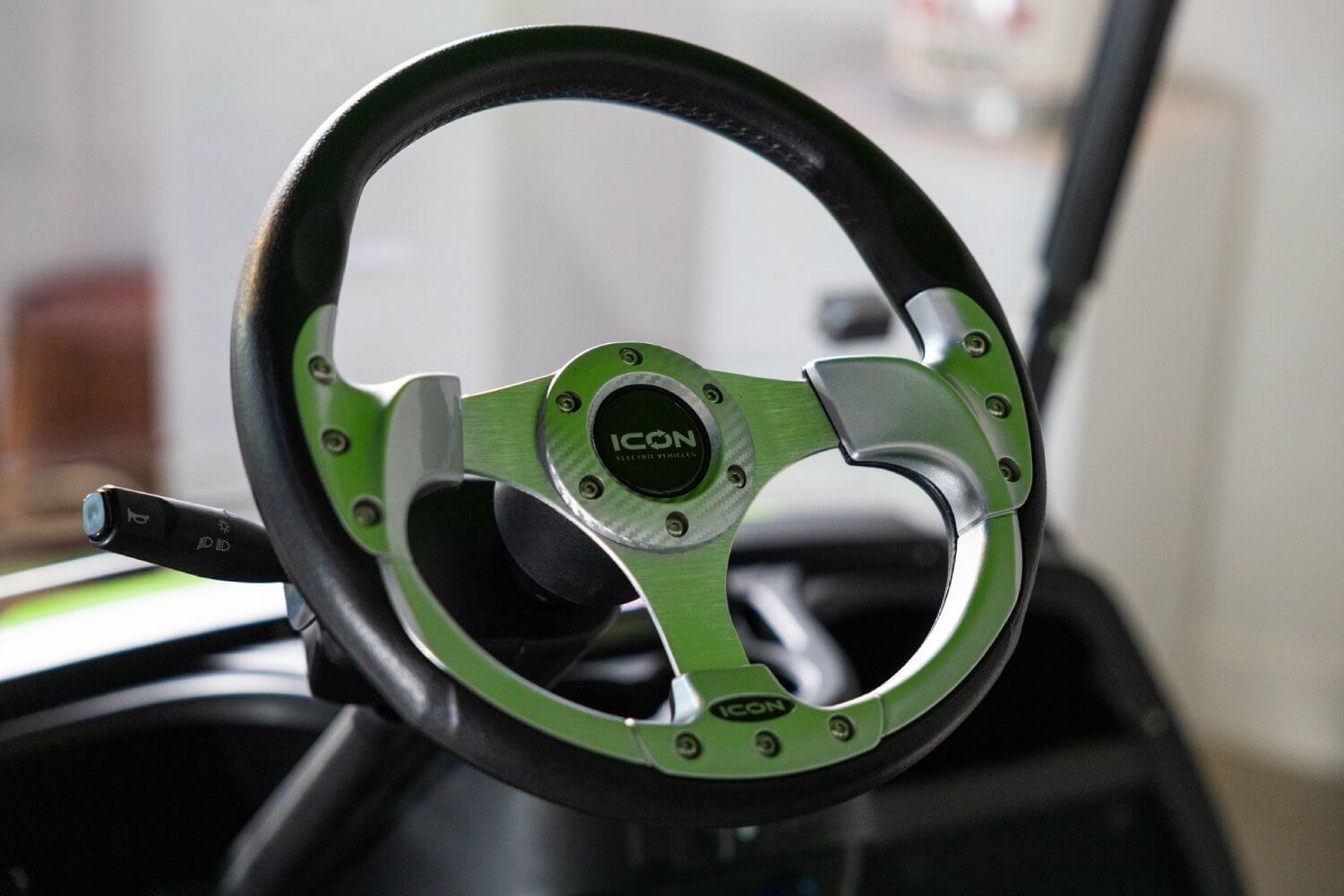

Steering
Self-Adjusting Double-Ended Rack and Pinion
Dash Components
Forward/Neutral/Reverse Switch, USB and 12V Plugs, Cubby Storage, Multiple Cup Holders, Key Switch, Instrumentation Cluster
Seats

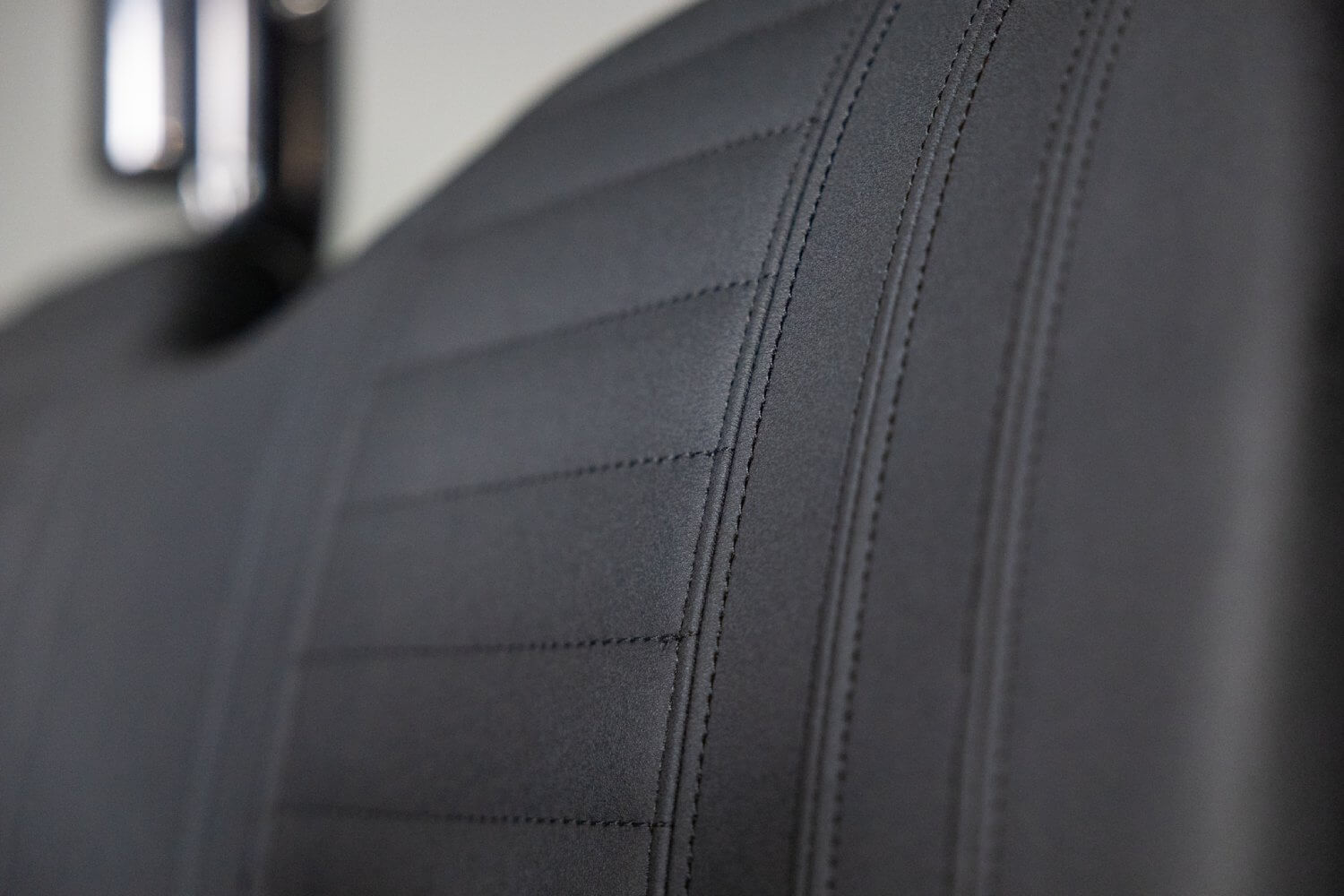

Marine Grade Vinyl, Custom Stitched Panel, Single Color, Color Matched with White or Black Accents
Golf Package

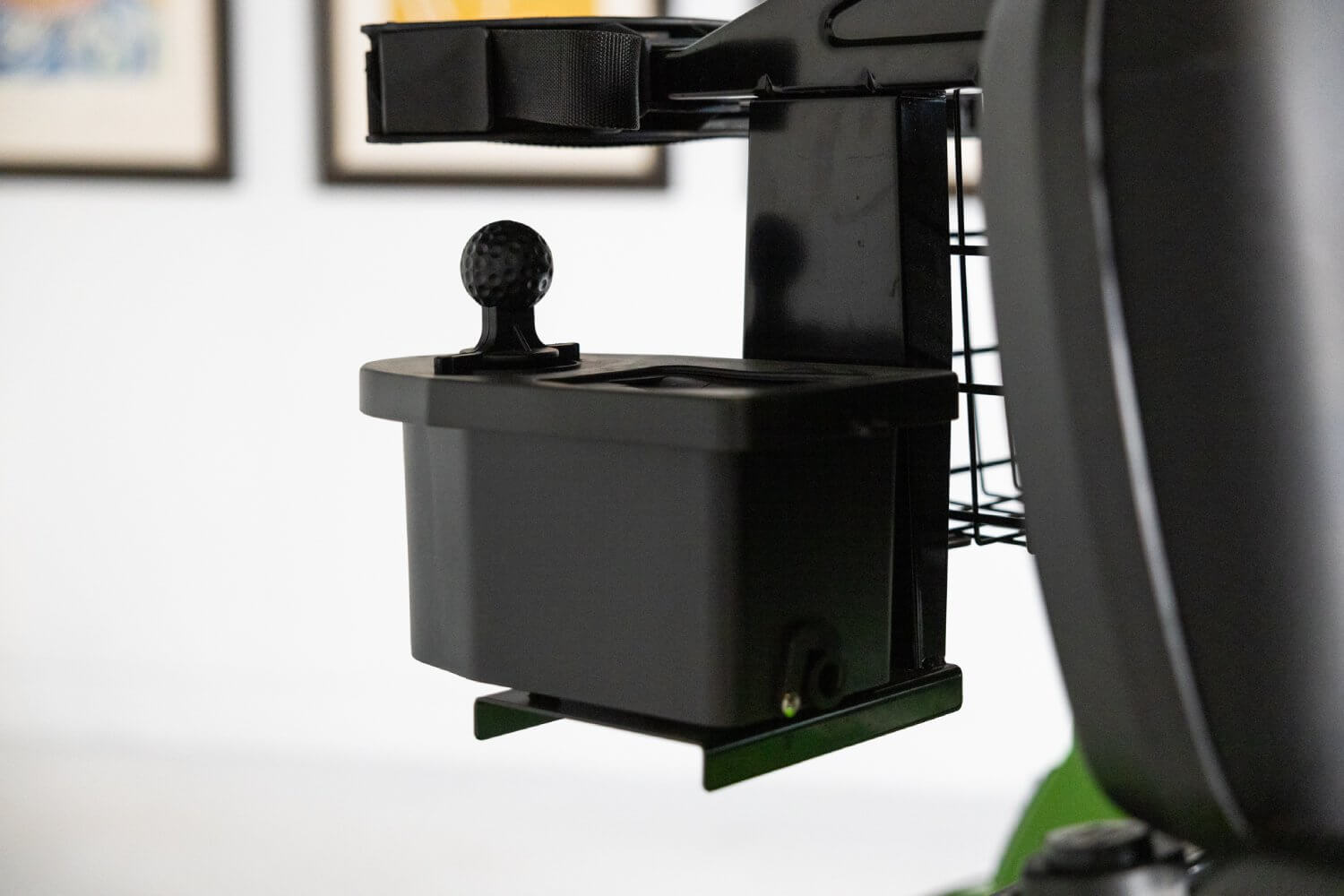

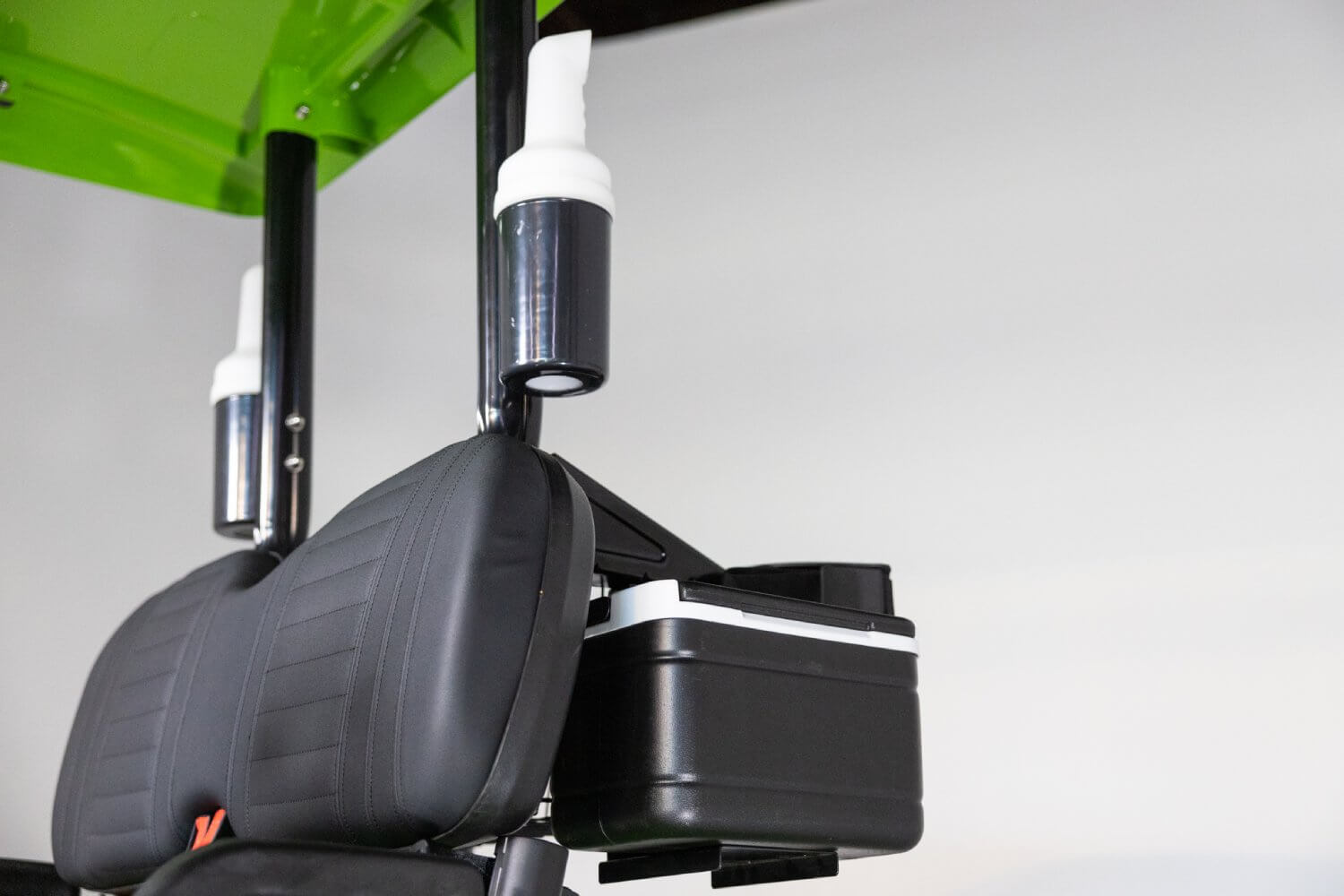

Sand/Seed Bottles, Ball/Club Washer, Cooler, Sweater Basket all included

Additional information

Color

BLACK, CARIBBEAN, CHAMPAGNE, FOREST, INDIGO, LIME, ORANGE, PURPLE, SANGRIA, SILVER, TORCH, WHITE, YELLOW
