Description

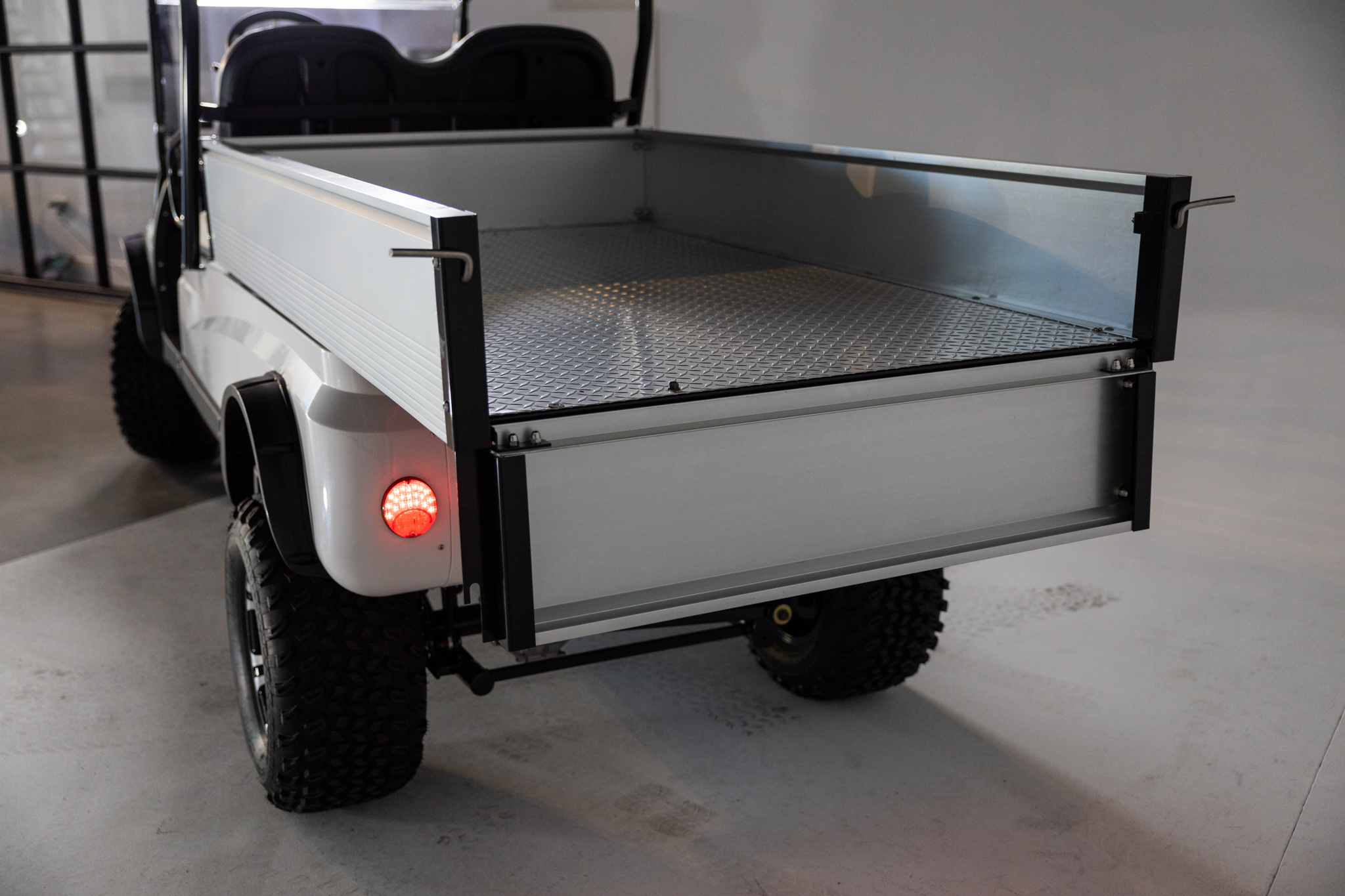

The ICON® i20UL is our lifted utility golf cart that is an absolute powerhouse, sure to get the job done right!
They’re loaded with class-leading features like 12″ aluminum wheels, lights, turn signals, high-speed rear ends, functional front and rear bumpers, painted rooftops, horns, digital gauges, and more.
The ICON® i20UL comes standard with a 48V ICON® 5KW 3 Phase High Torque motor for greater torque and distance!
Weight: 1490 lbs.
Capacity: 2 People
Overall Dimensions LxWxH: 144inx49inx82in
Colors: White, Black, Sangria, Orange, Purple, Torch Red, Champagne, Yellow, Lime Green, Forest Green, Caribbean Blue, Silver, Indigo Blue
Windshield: Foldable Acrylic/Optional DOT Acrylic
Roof: Innovative air deflecting design with full high-strength aluminum frame
Body: Injection Molded Thermoplastic that is both stylish and resilient to outside damage
Mirrors: Fully Adjustable and Foldable
Floor: High-Density Polyethylene molded for extra strength and toughness with Rubber Floor Mat
Wheels: 10 or 12 Inch Machined Face Aluminum with Powder Coated Accents
Tires: 205/50R10 6 Ply Nylon Cord or 215/35R12 4 Ply Nylon Cord
Front Suspension: Macpherson Style Fully Independent Coil Over Shock with Camber Adjustment.
Rear Suspension: Solid Axle Coil Over Shock and Stabilizing Bar
Drivetrain: 10.5:1 or 14:1 High Speed Rear Axle
Chassis: Tubular Powder Coated Steel Frame
Instrumentation: Fully Integrated Digital Instrument Cluster
Lighting and Signals: Single Combination Switch for LED Projector Hi & Lo Beam Headlights, LED Signal Lights, Taillights, and Horn
Safety Restraint: Side Hip Restraint & Retractable Seat Belts
Braking System: Four Wheel Disk Brakes and Electromagnetic Parking Brake System
Steering: Self-Adjusting Double-Ended Rack and Pinion
Dash Components: Forward/Neutral/Reverse Switch, USB and 12V Plugs, Cubby Storage, Multiple Cup Holders, Key Switch, Instrumentation Cluster
Seats: Marine Grade Vinyl, Custom Stitched Panel, Single Color, Color Matched with White or Black Accents.
Controller: 450A ICON Controller
Motor: 48V ICON 5KW 3 Phase High Torque Motor
Charger: ICON 48V On-Board Charging System with Body Mounted Charge Indicator
Batteries: (6) 8 Volt Sealed Maintenance-Free AGM
