i40 F
i40 F
Description
Classy, sophisticated & stylish.

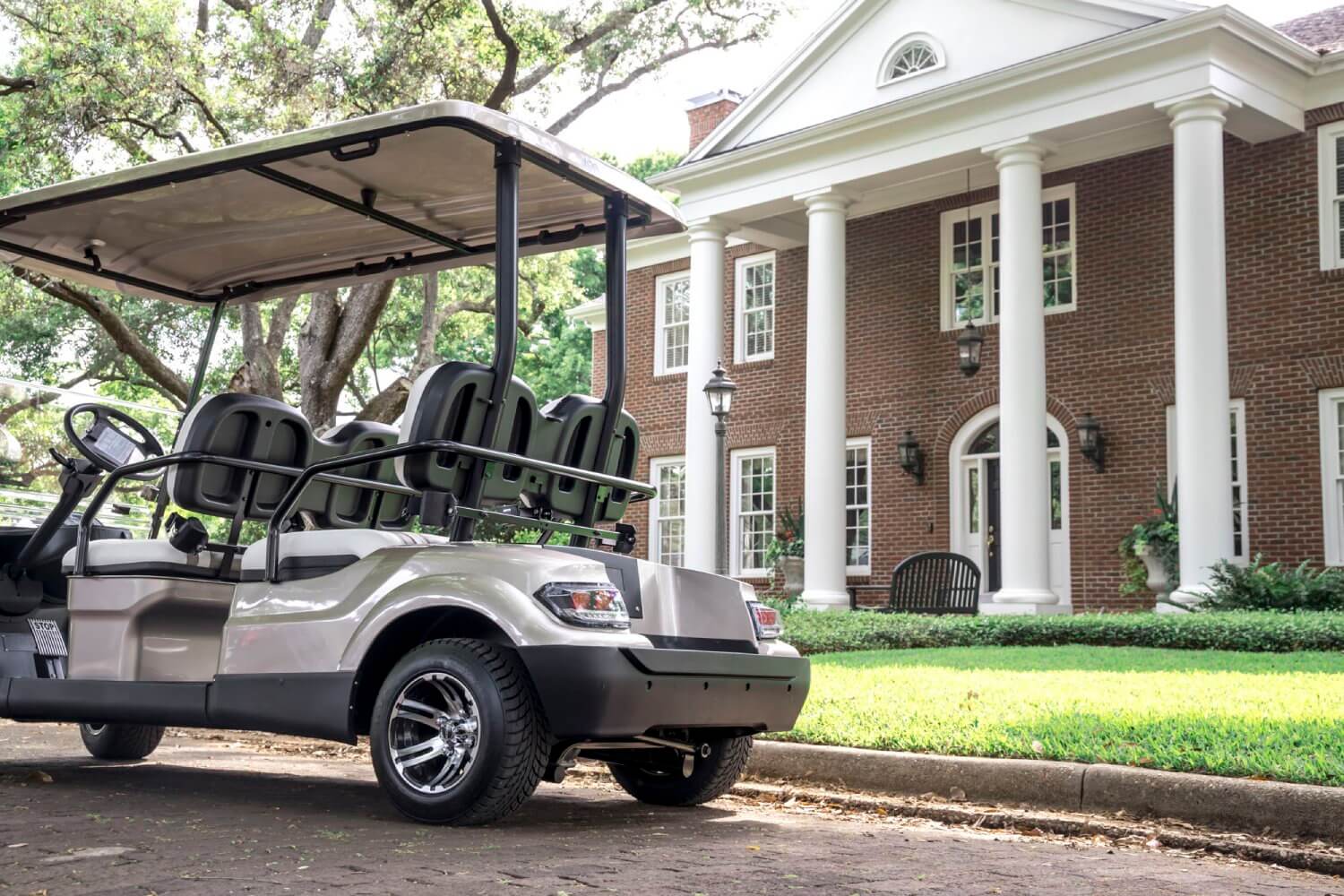

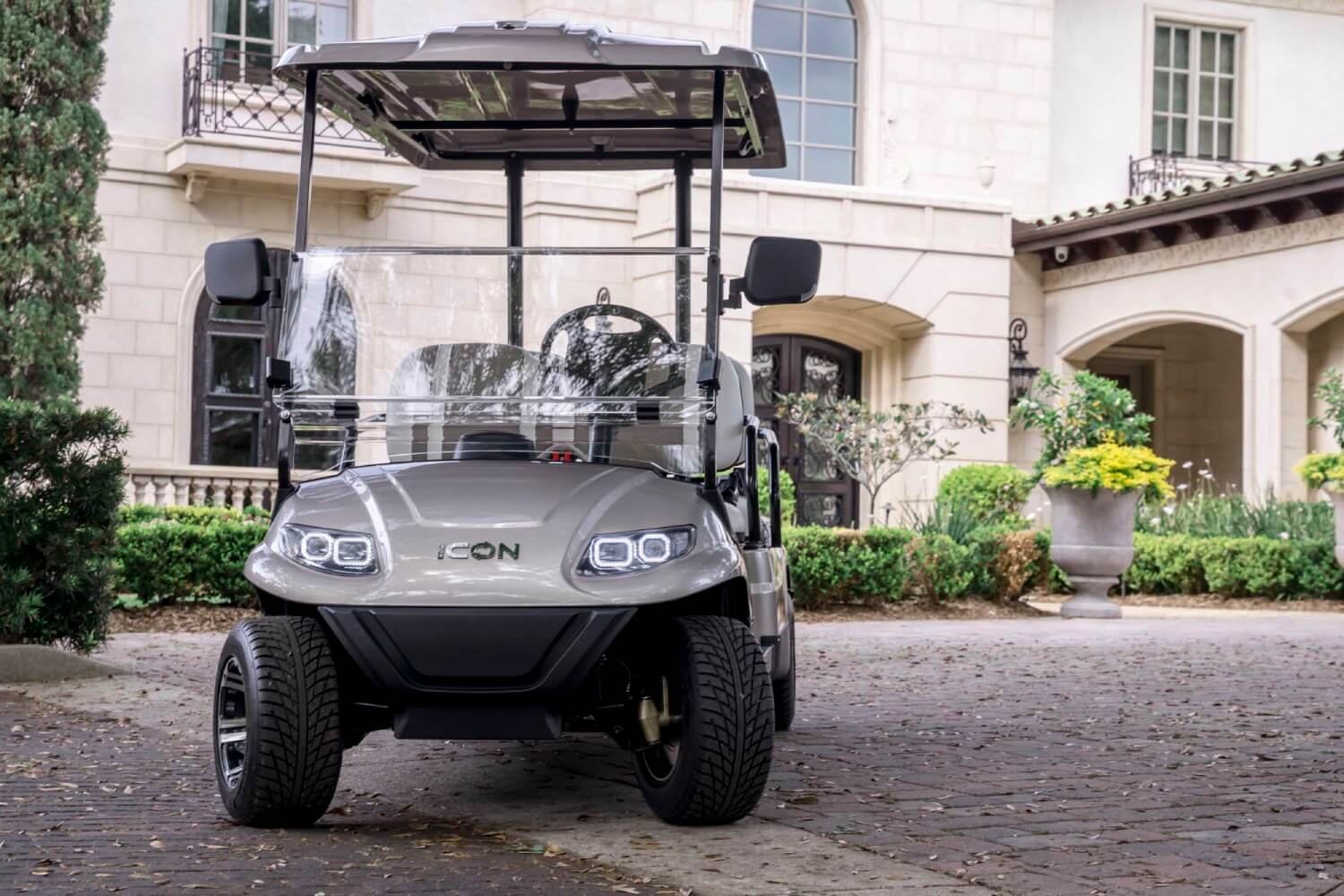

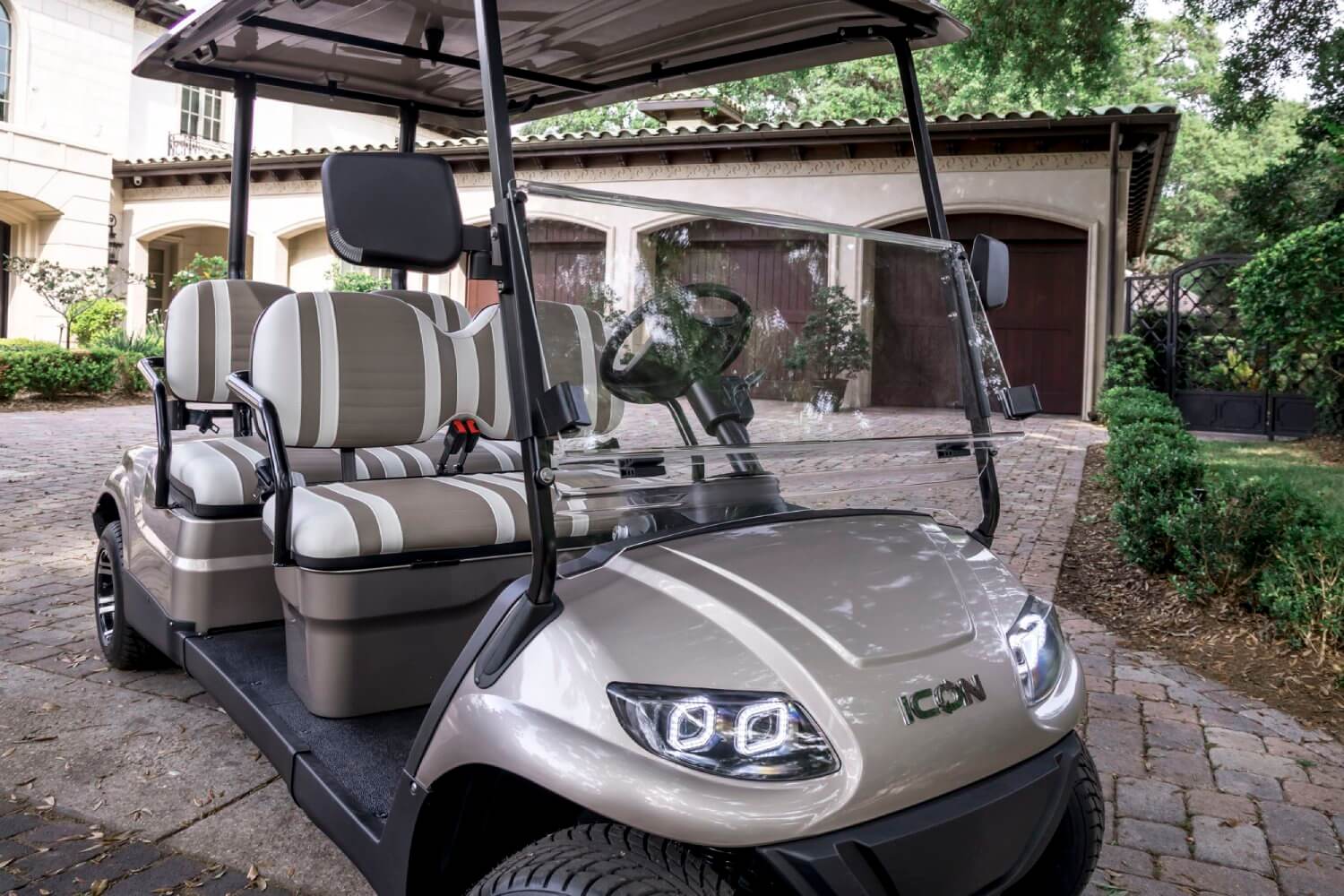

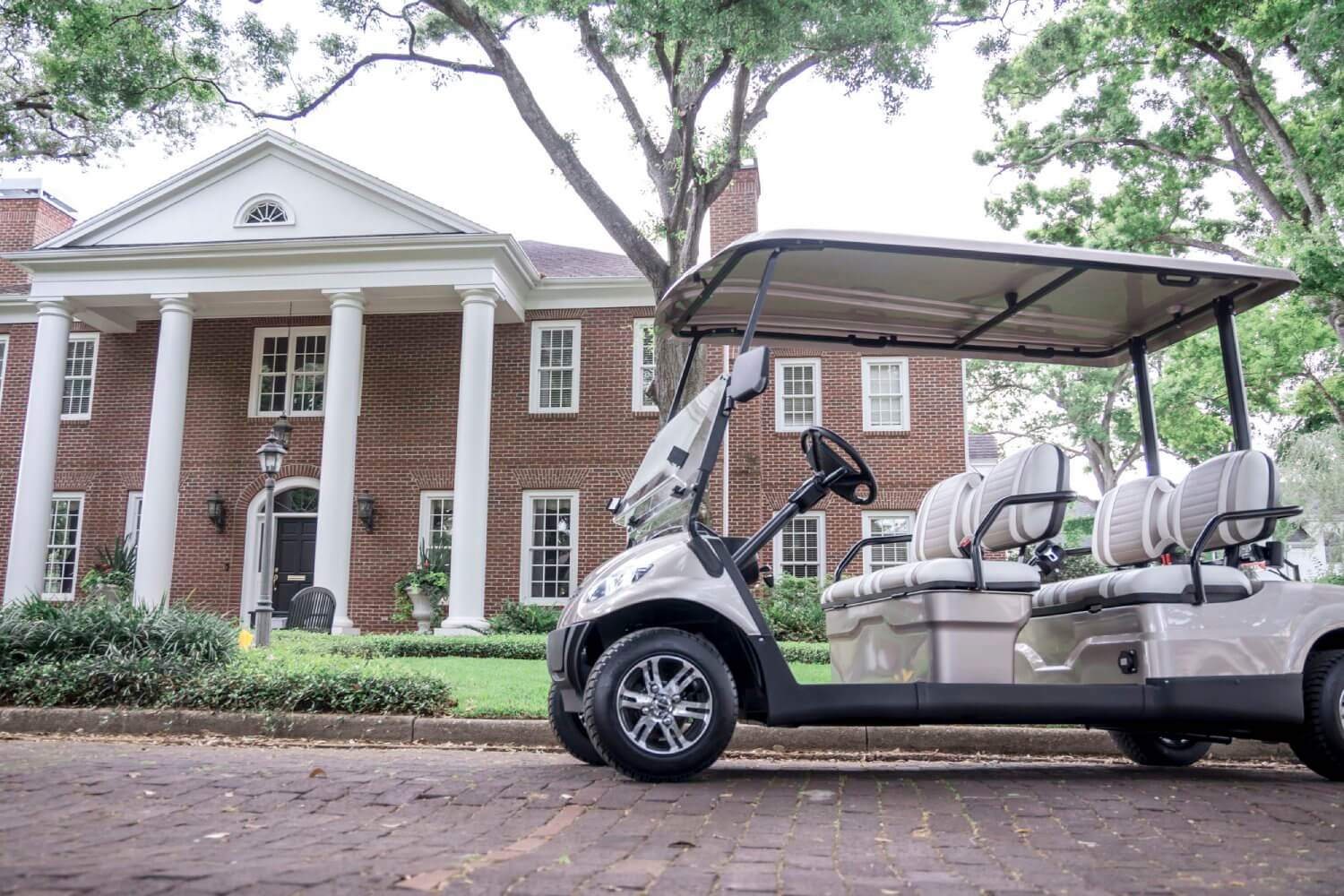

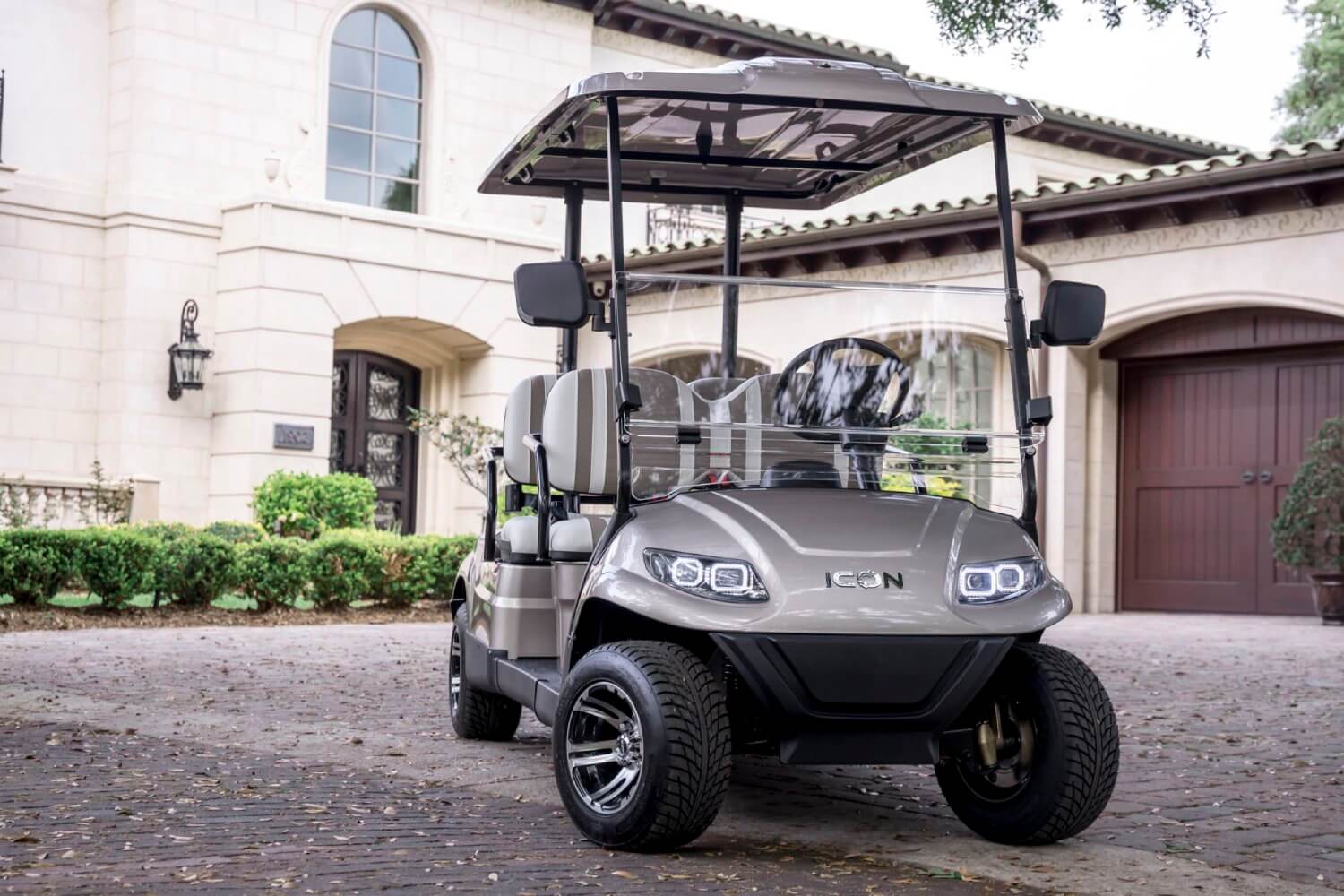

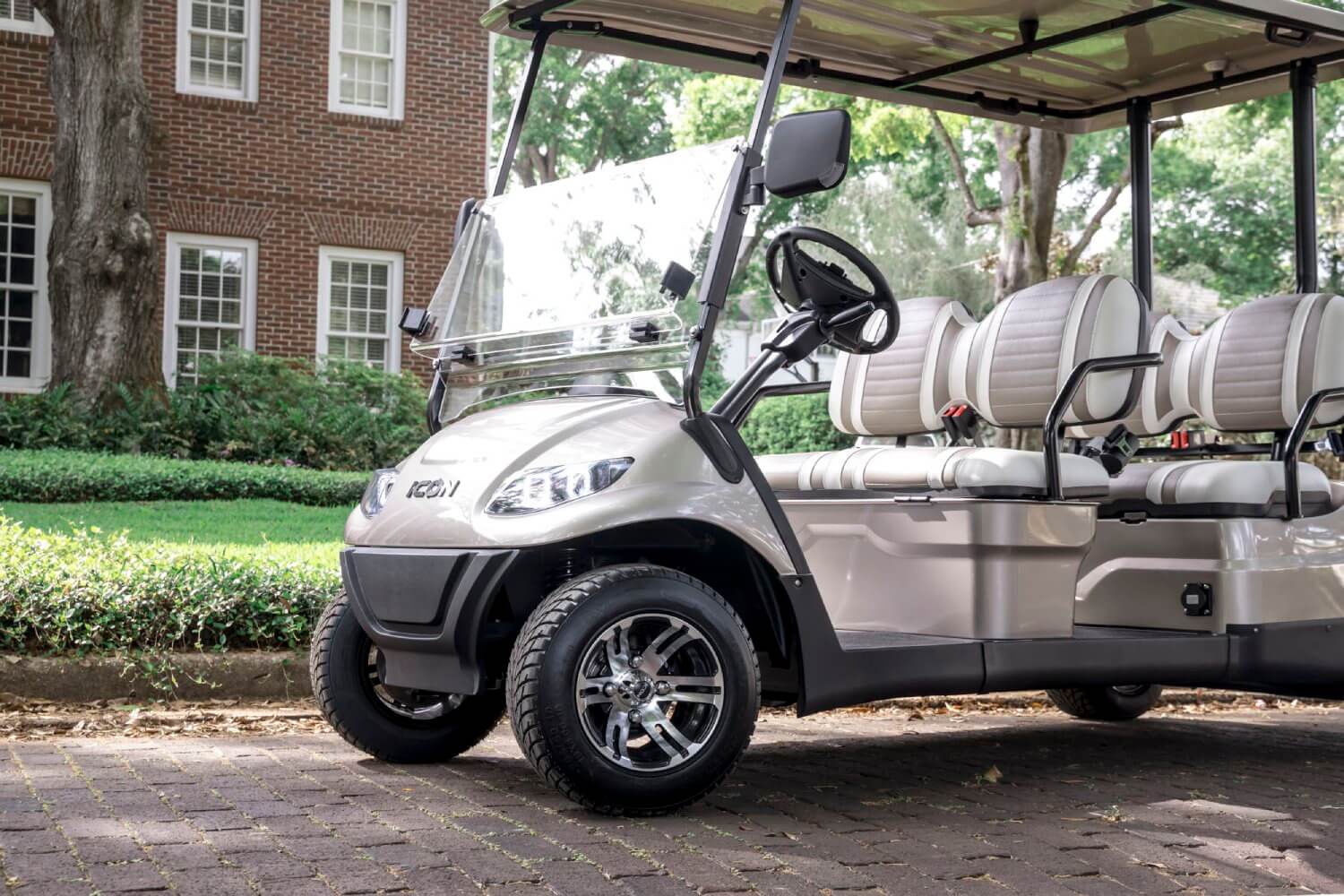

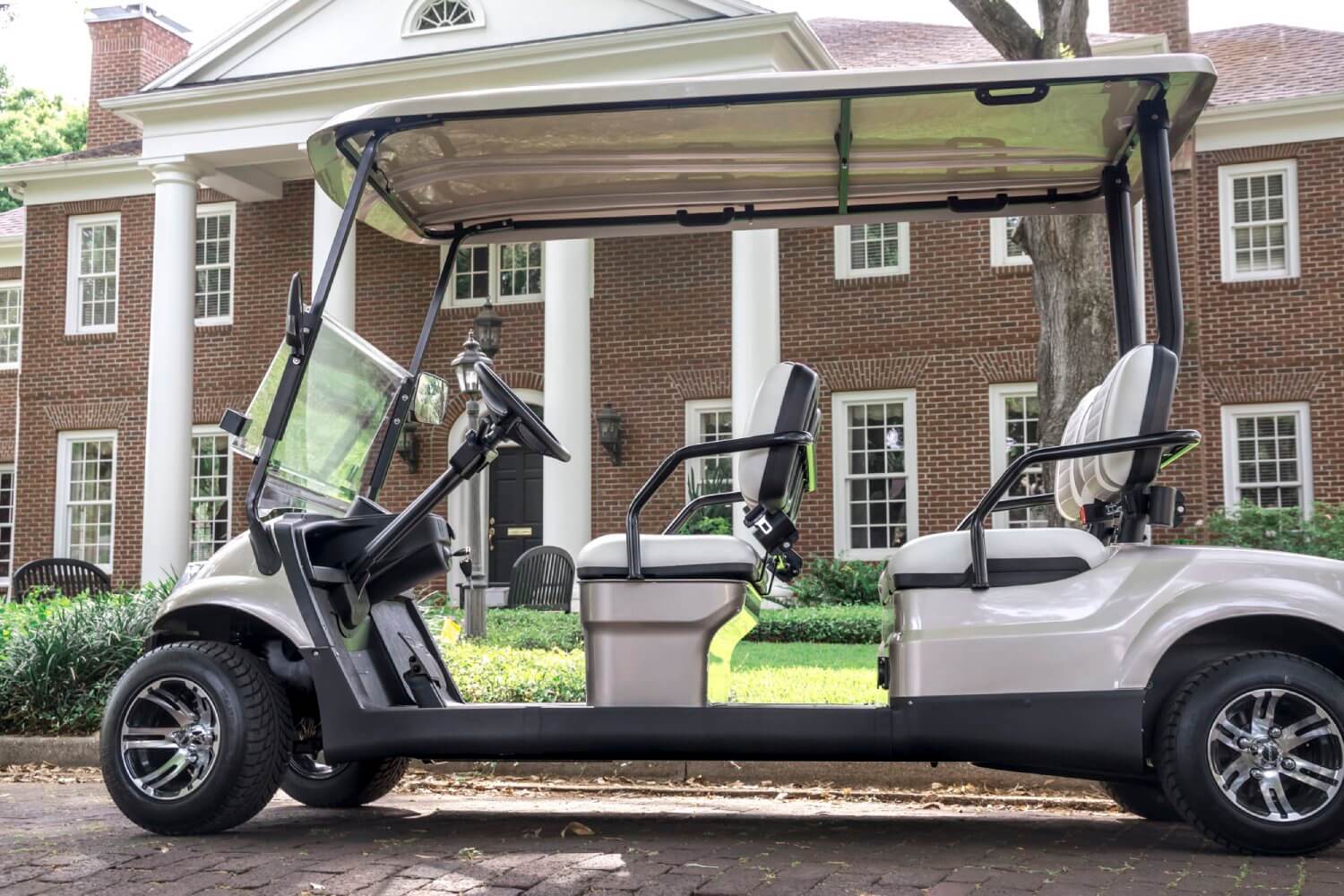

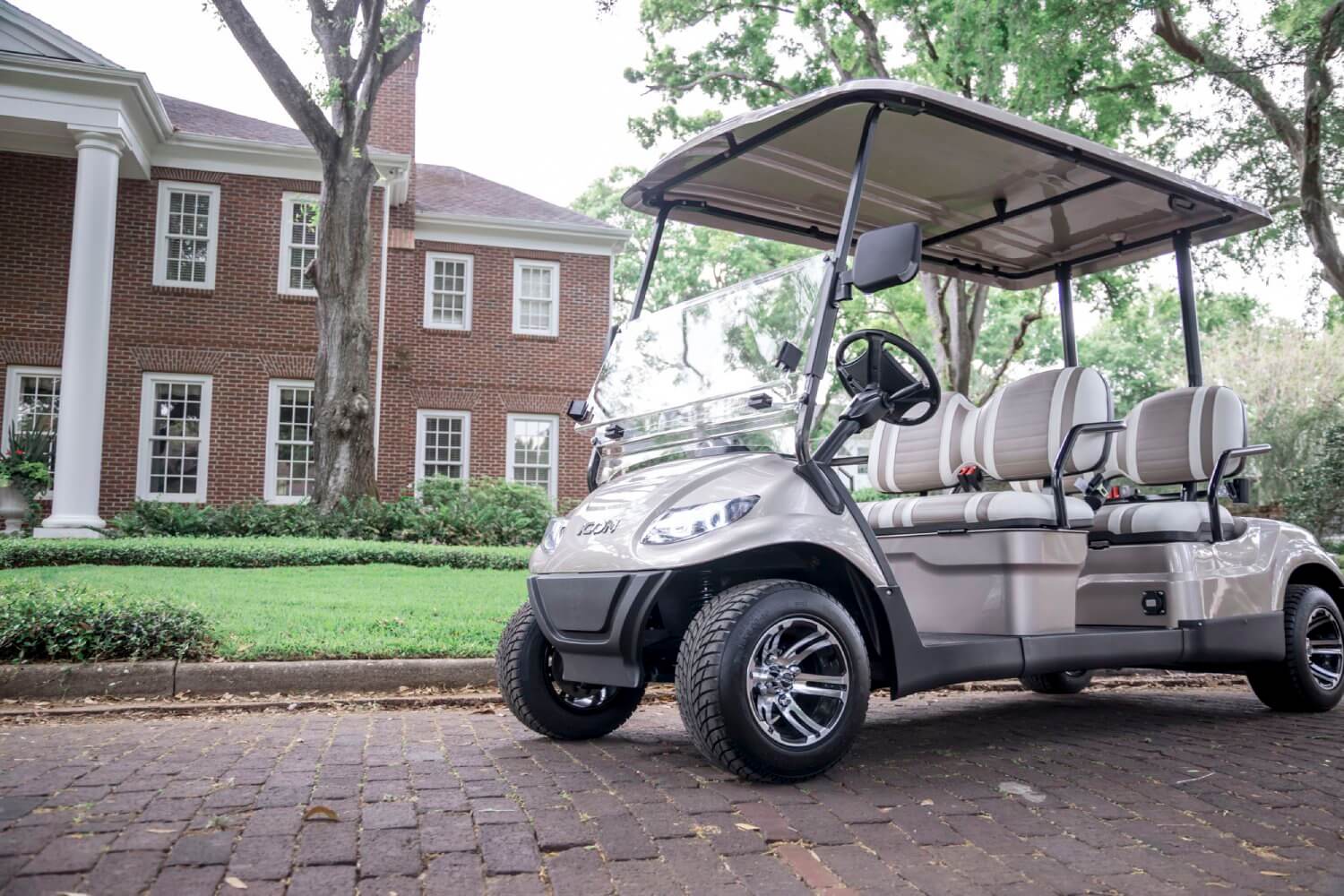

This forward facing four seater golf car is one of ICON® EV’s most sought after models! Loaded with premium features like 10′′ aluminum wheels, 4-wheel disc brakes, powder coated steel chassis, lights, turn signals, high speed rear ends, durable front and rear bumpers, painted rooftops, horns, digital gauges, and more. For individuals, or agencies that would like to transport passengers comfortably, the i40F model golf cars are the right fit.
The ICON® i40F comes standard with (8) 6V Sealed Maintenance-Free AGM batteries, an upgraded 48V ICON 5KW 3 Phase High Torque motor, and a controller for ICONIC performance! Optional upgrade to 51V 105AH Eco Lithium Battery now available!
Electrical Systems
Controller:
450A ICON Controller
Motor:
48V ICON 5KW 3 Phase High Torque Motor
Charger:
ICON 48V On-Board Charging System with Body Mounted Charge Indicator
Batteries:
(8) 6 Volt Sealed Maintenance-Free AGM Batteries, or an optional upgrade to 51V 105AH Eco Lithium Battery now available!
Specs
Weight:
1378 lbs.
Capacity:
4 People
Overall Dimensions LxWxH:
122inx49inx75in
Colors:
White, Black, Sangria, Orange, Purple, Torch Red, Champagne, Yellow, Lime Green, Forest Green, Caribbean Blue, Silver, Indigo Blue
Body Configuration
Windshield:
Foldable Acrylic/Optional DOT Acrylic
Roof:
Innovative air deflecting design with full high-strength aluminum frame
Body:
Injection Molded Thermoplastic that is both stylish and resilient to outside damage
Mirrors:
Fully Adjustable and Foldable
Floor:
High-Density Polyethylene molded for extra strength and toughness with Rubber Floor Mat
Wheels:

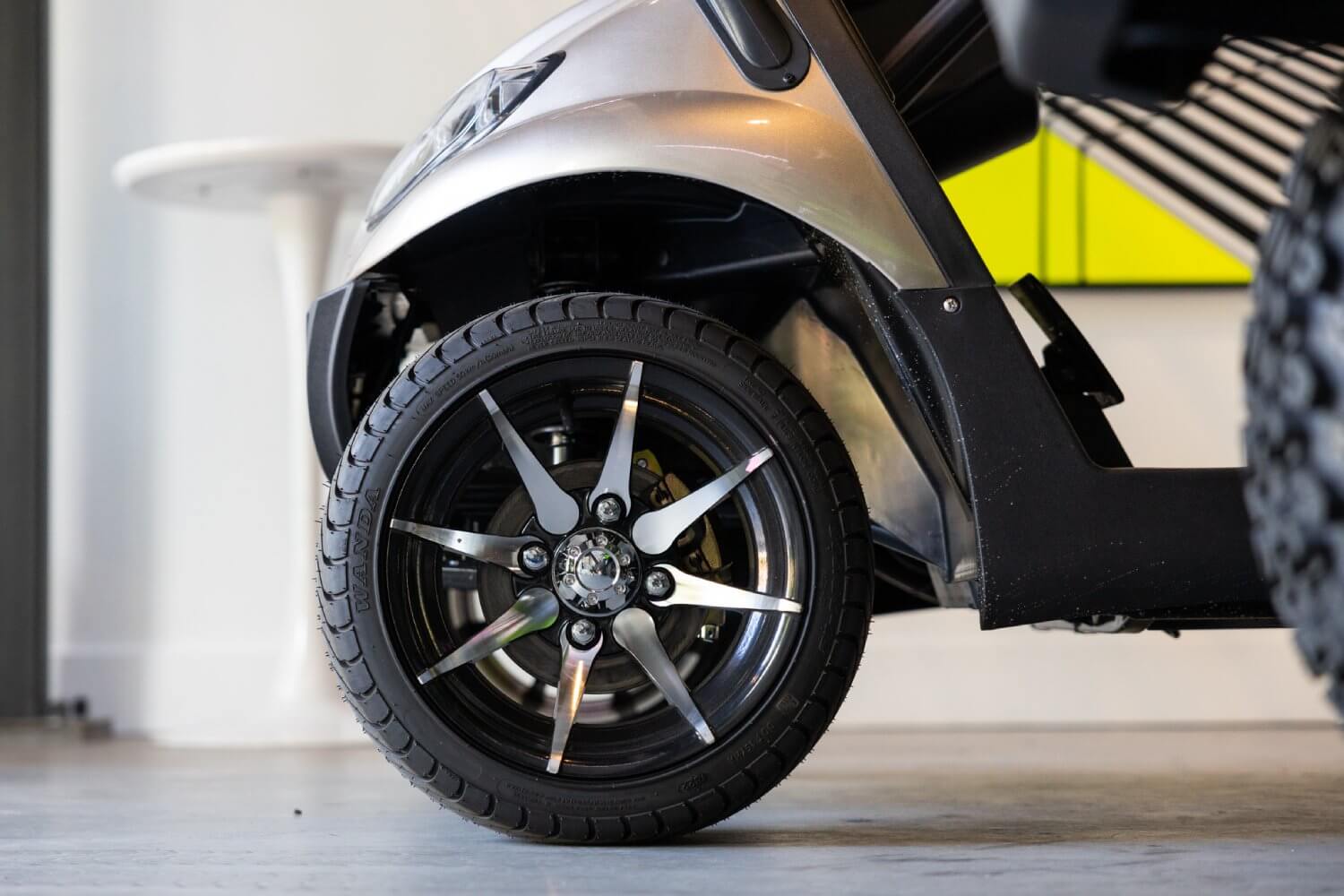

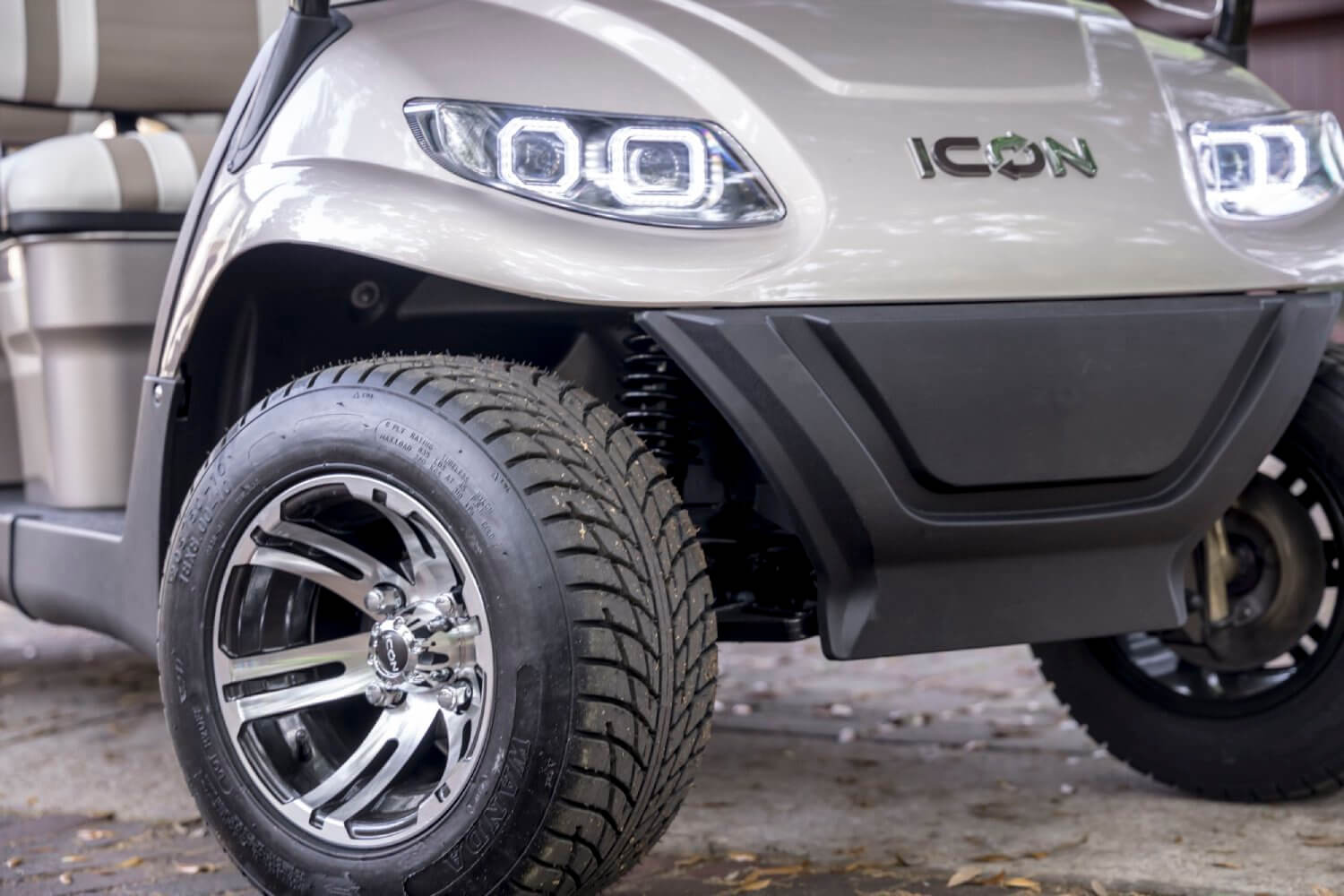

10 or 12 Inch Machined Face Aluminum with Powder Coated Accents
Tires:
205/50R10 6 Ply Nylon Cord or 215/35R12 4 Ply Nylon Cord
Front Suspension:
Macpherson Style Fully Independent Coil Over Shock with Camber Adjustment
Rear Suspension:
Solid Axle Coil Over Shock and Stabilizing Bar
Drivetrain:
10.5:1 or 14:1 High Speed Rear Axle • Chassis: Tubular Powder Coated Steel Frame
Chassis:
Tubular Powder Coated Steel Frame

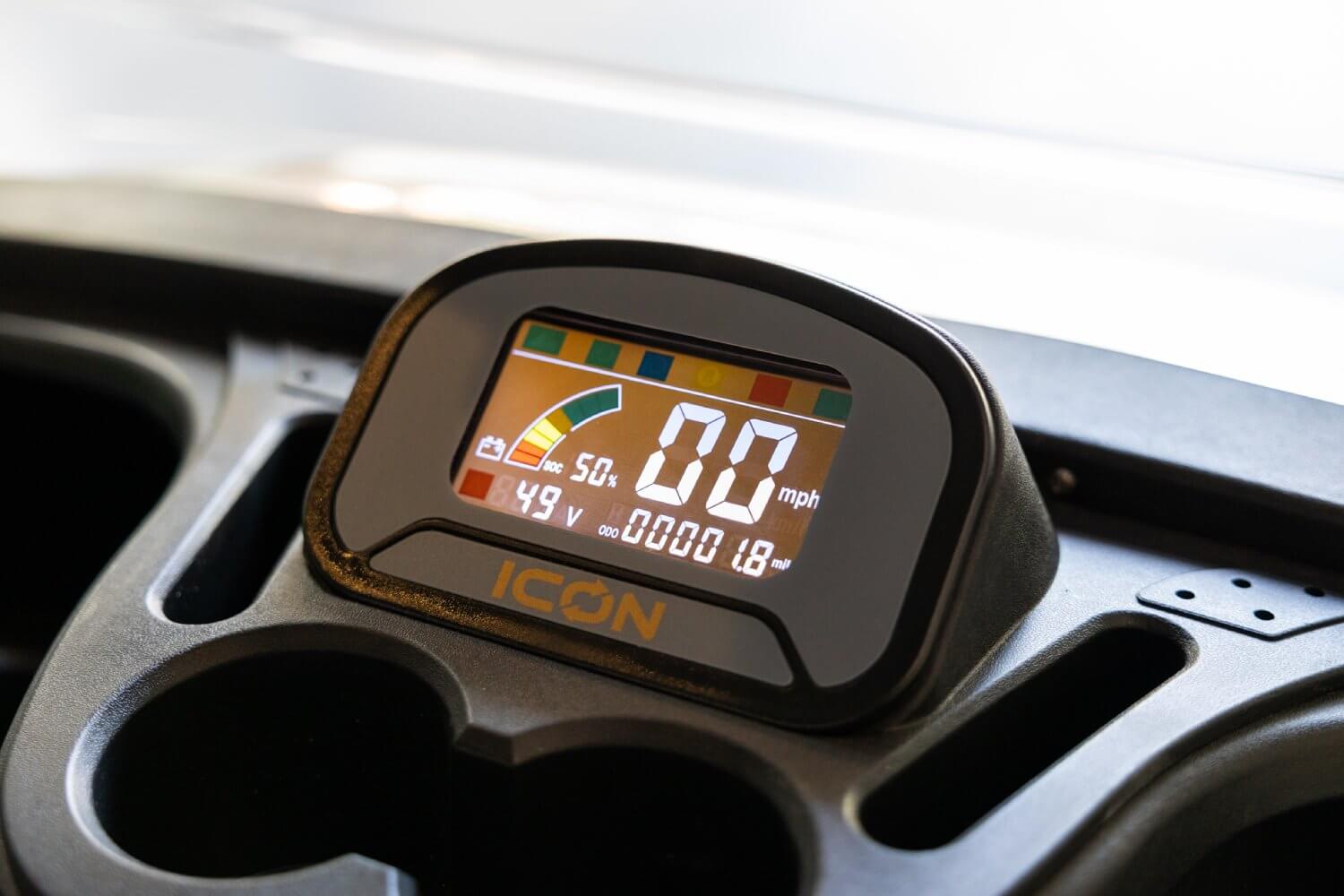

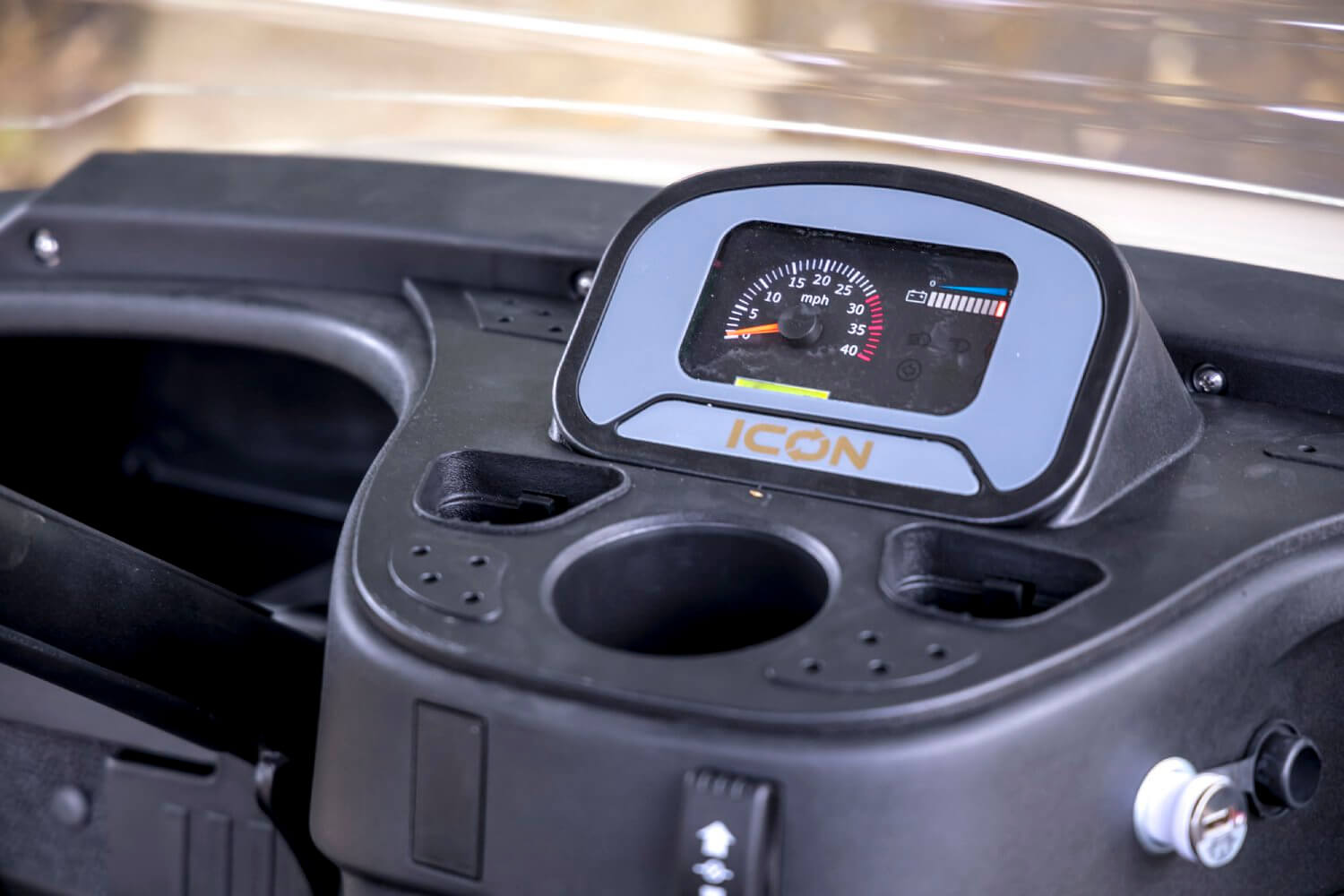

Instrumentation:
Fully Integrated Digital Instrument Cluster

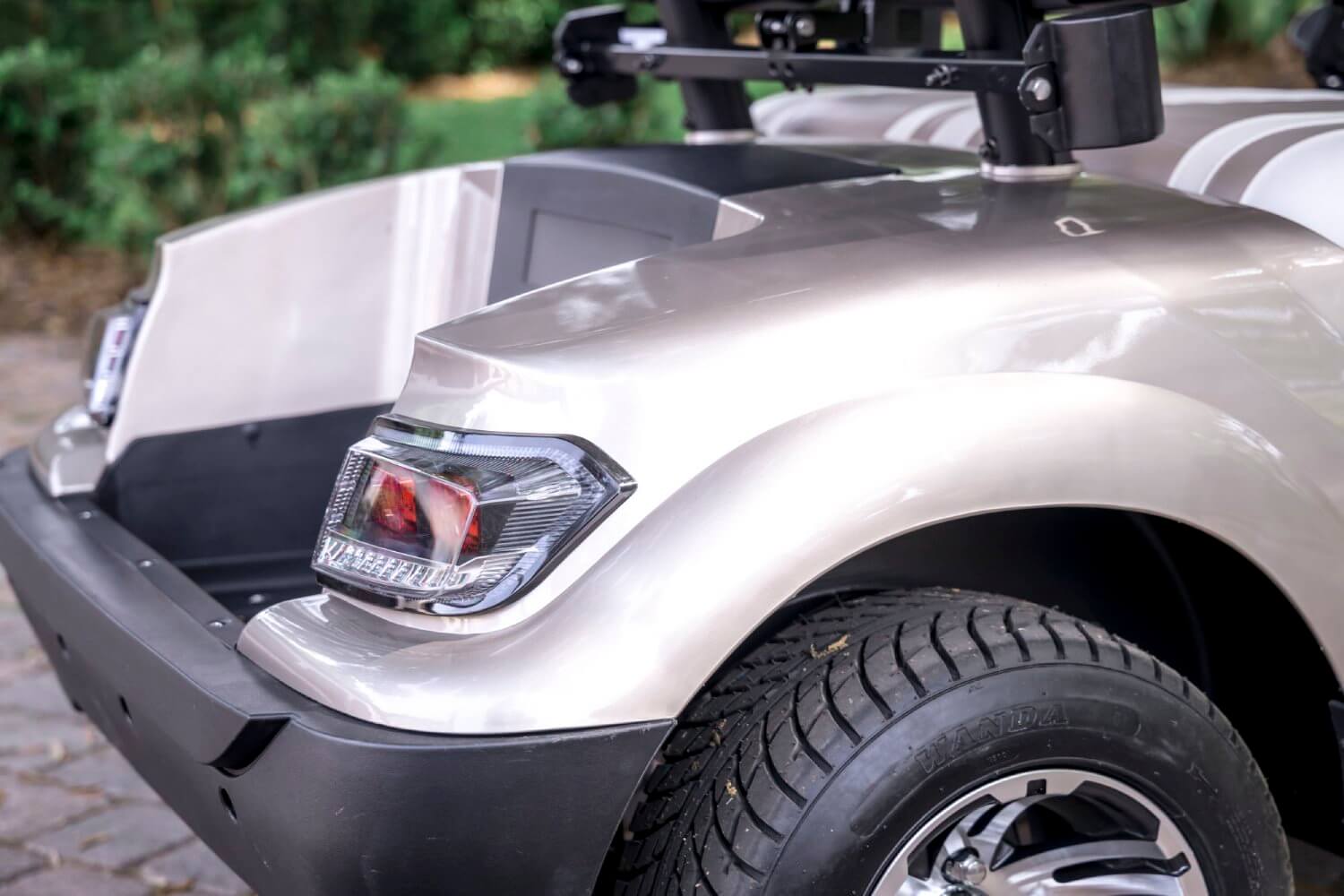

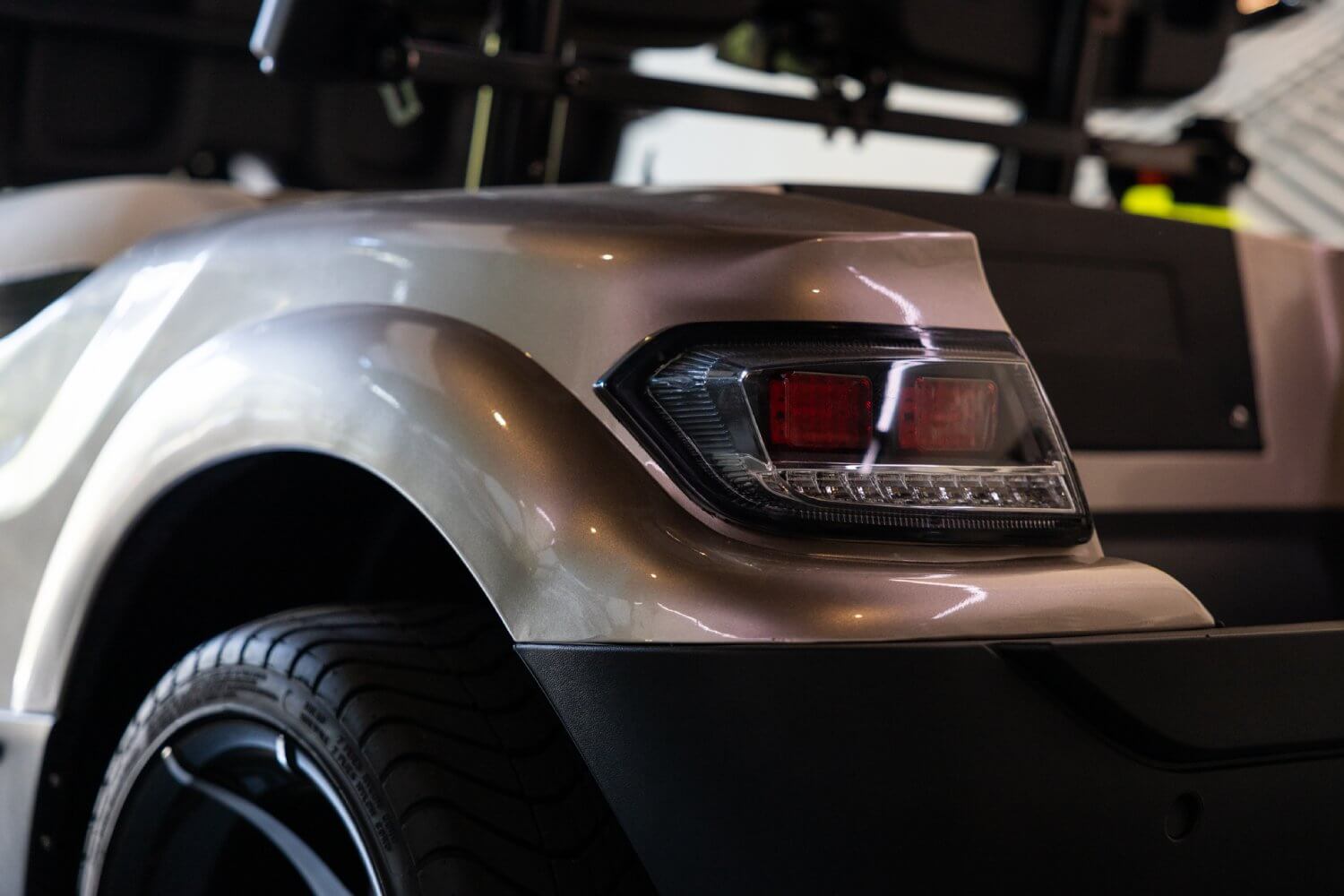

Lighting and Signals:

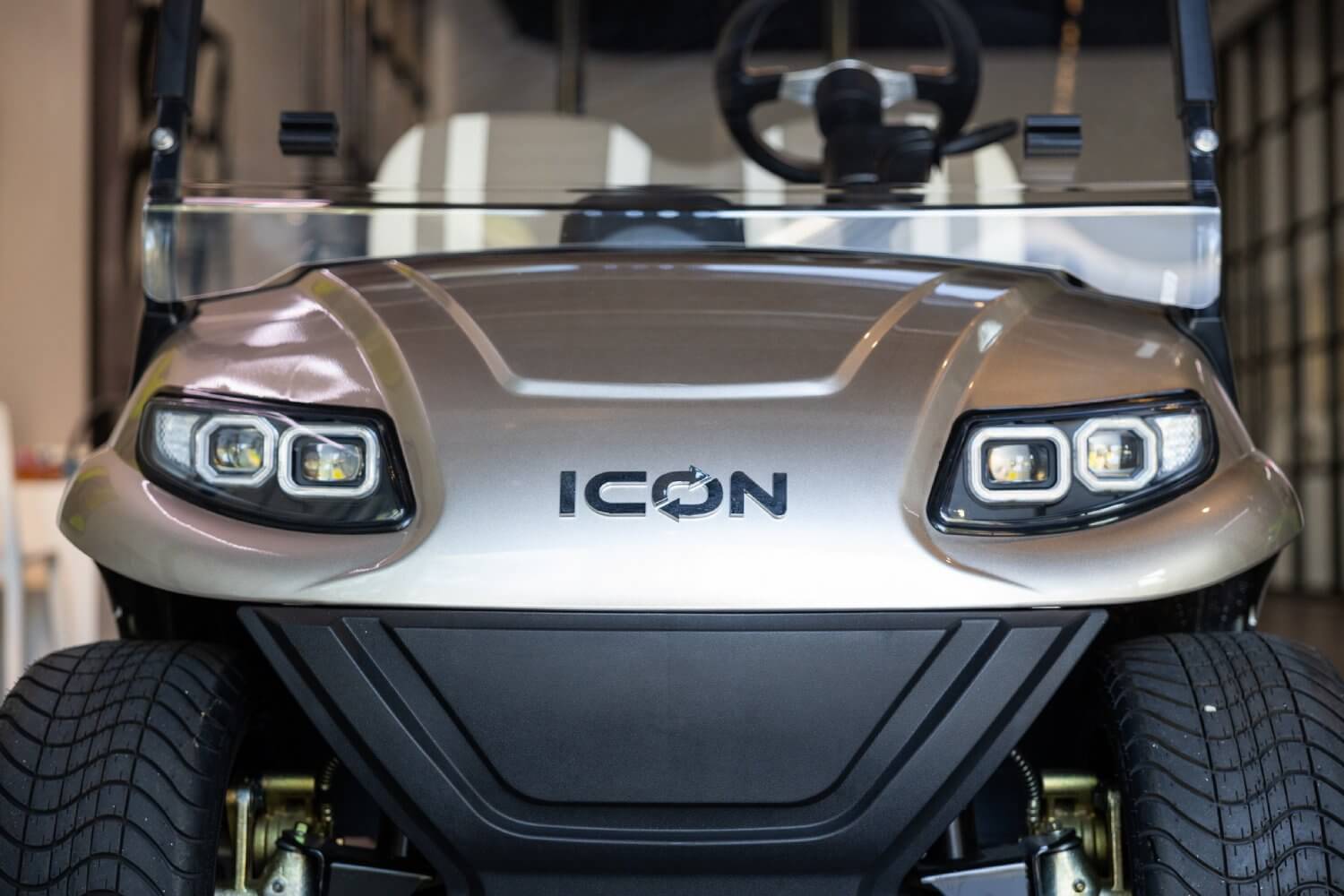

Single Combination Switch for LED Projector Hi & Lo Beam Headlights, LED Signal Lights, Taillights, and Horn
Safety Restraint:
Side Hip Restraint & Retractable Seat Belts
Braking System:

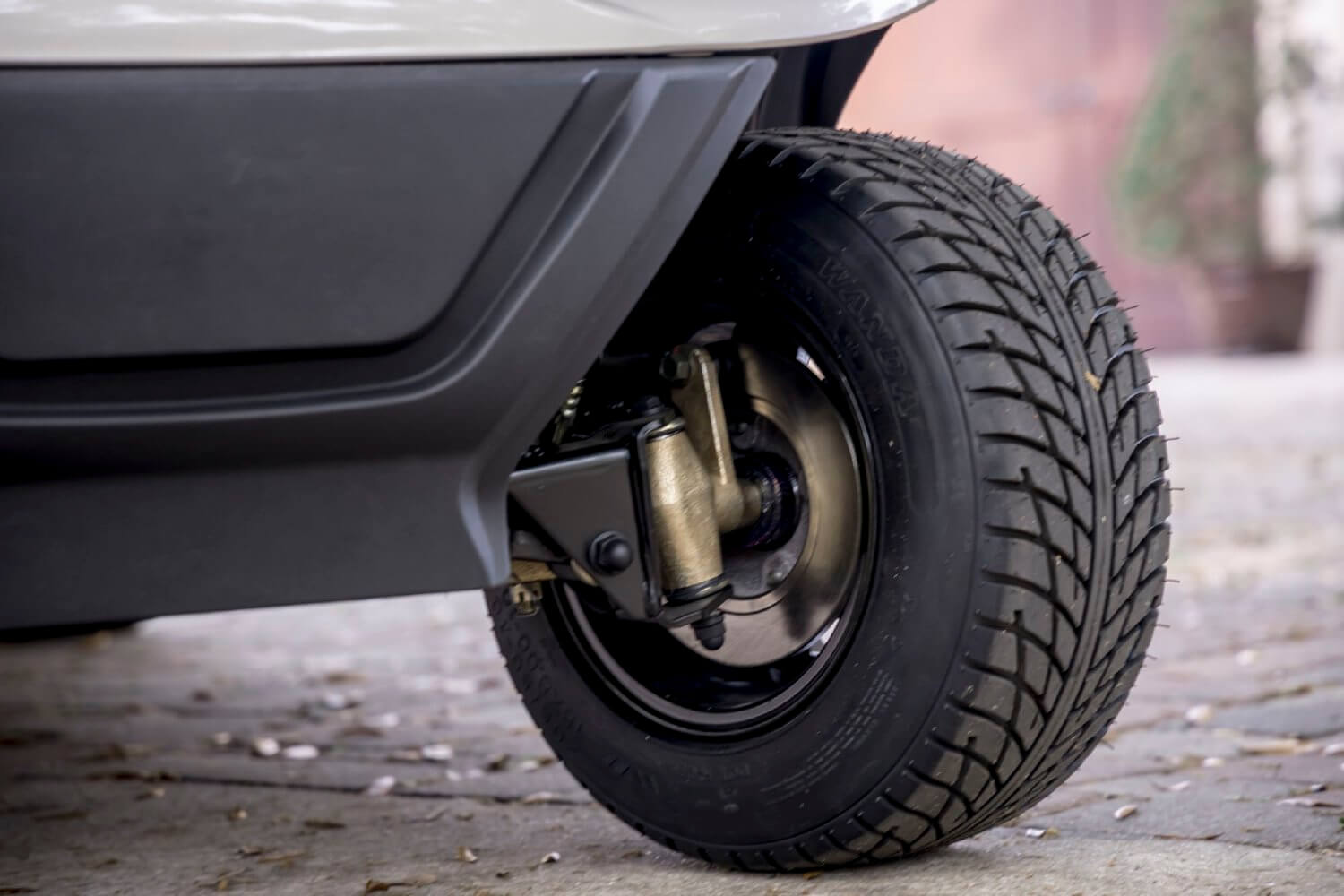

Four Wheel Disc Brakes and Electromagnetic Parking Brake System

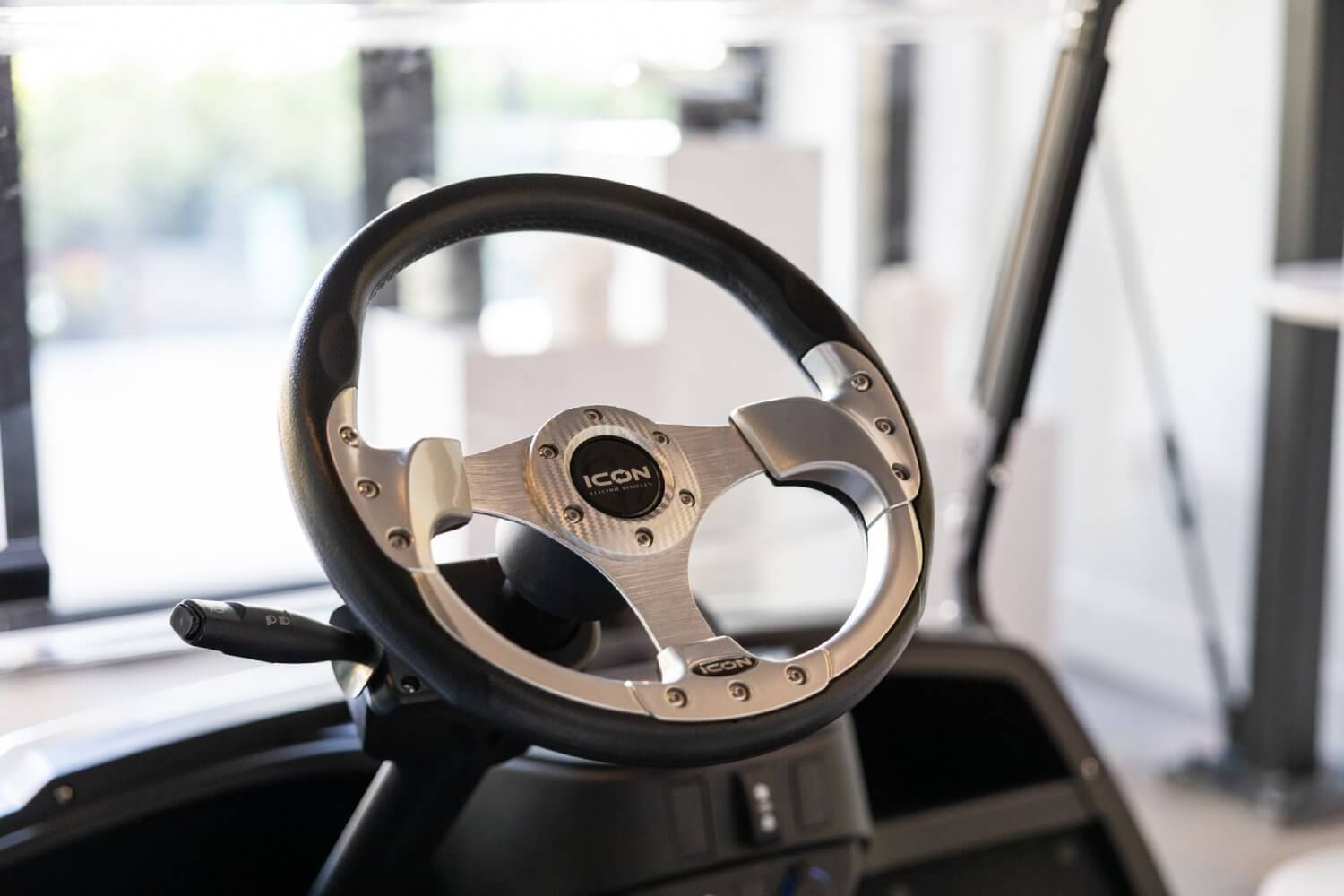

Steering:
Self-Adjusting Double-Ended Rack and Pinion

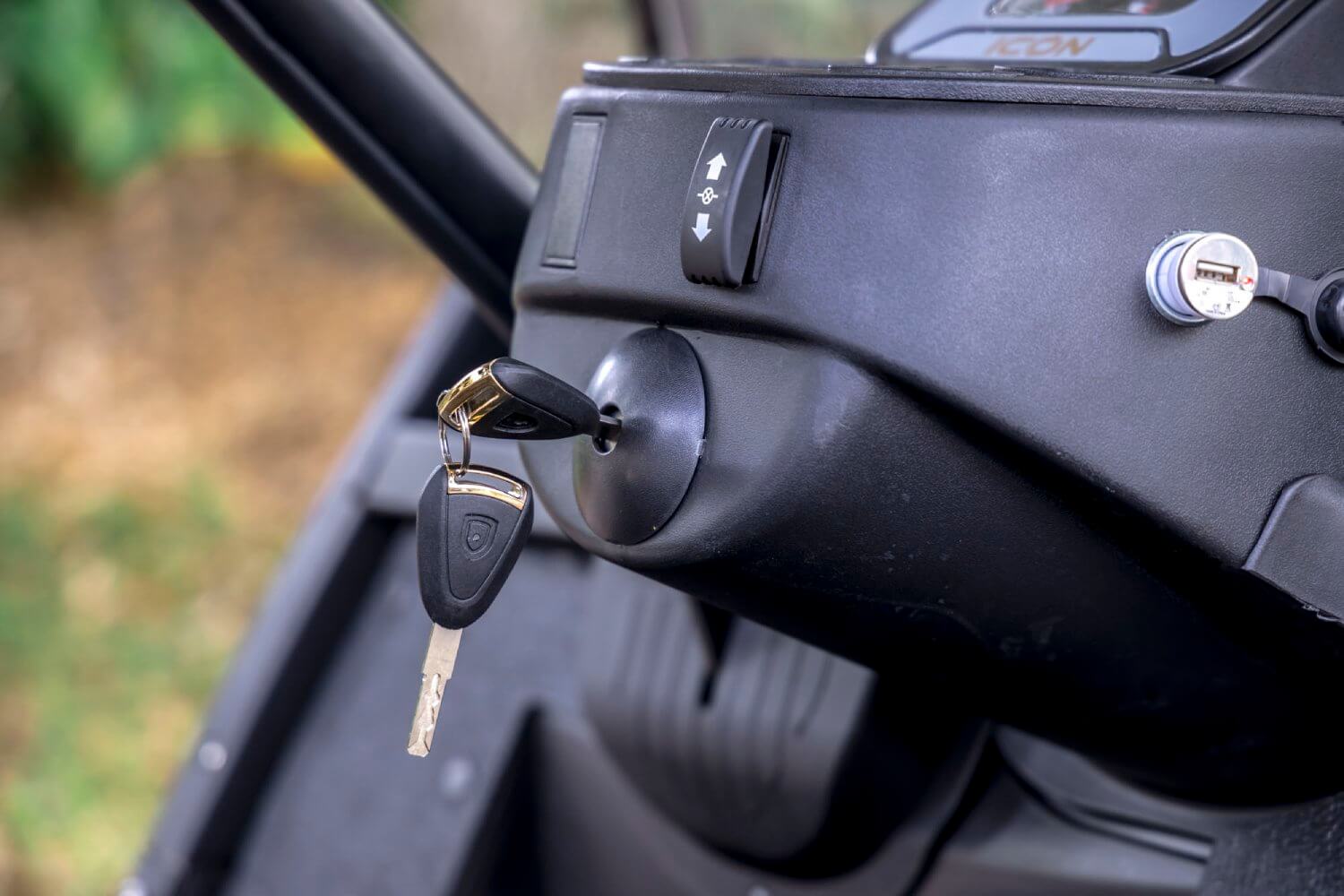

Dash Components:
Forward/Neutral/Reverse Switch, USB and 12V Plugs, Cubby Storage, Multiple Cup Holders, Key Switch, Instrumentation Cluster

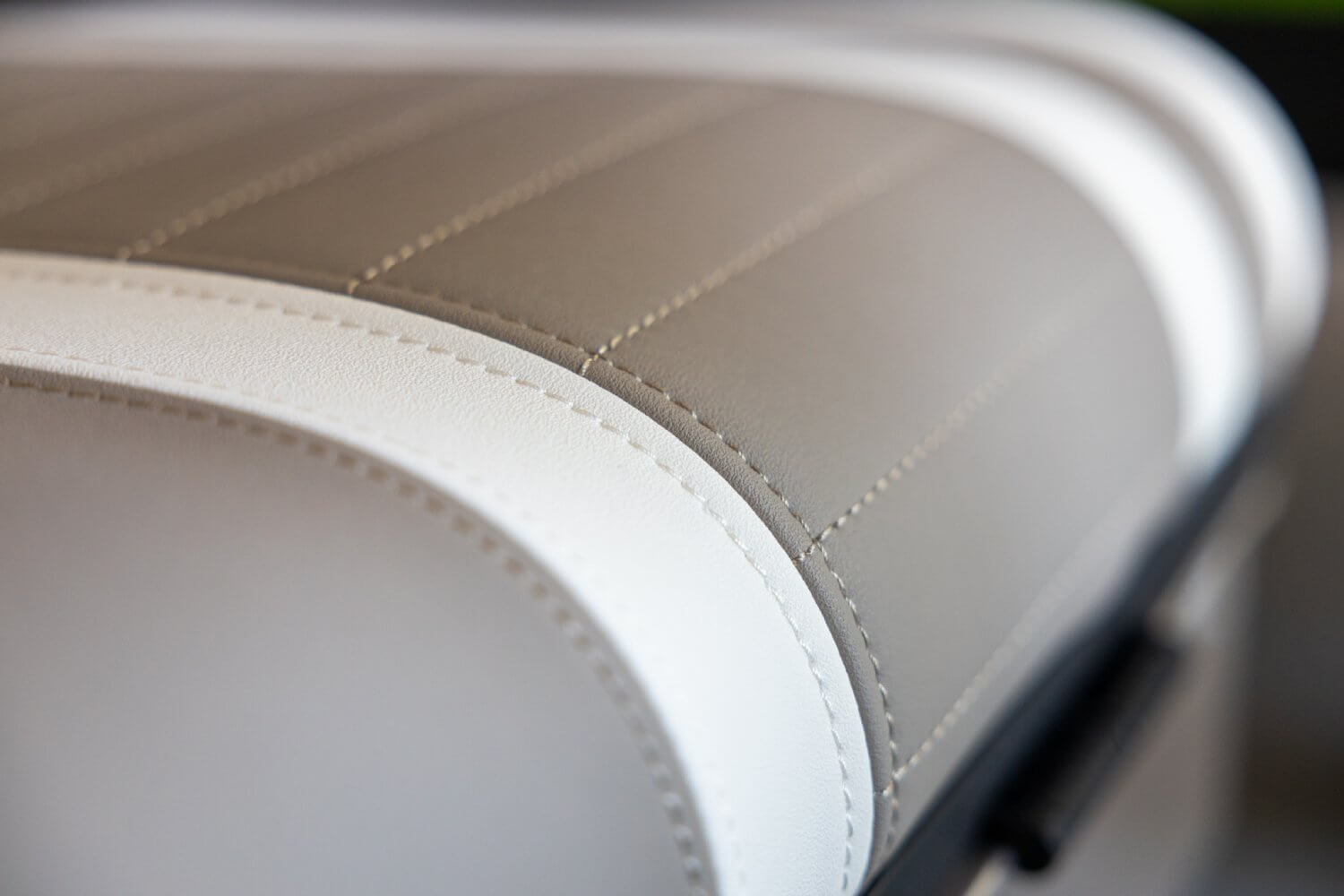

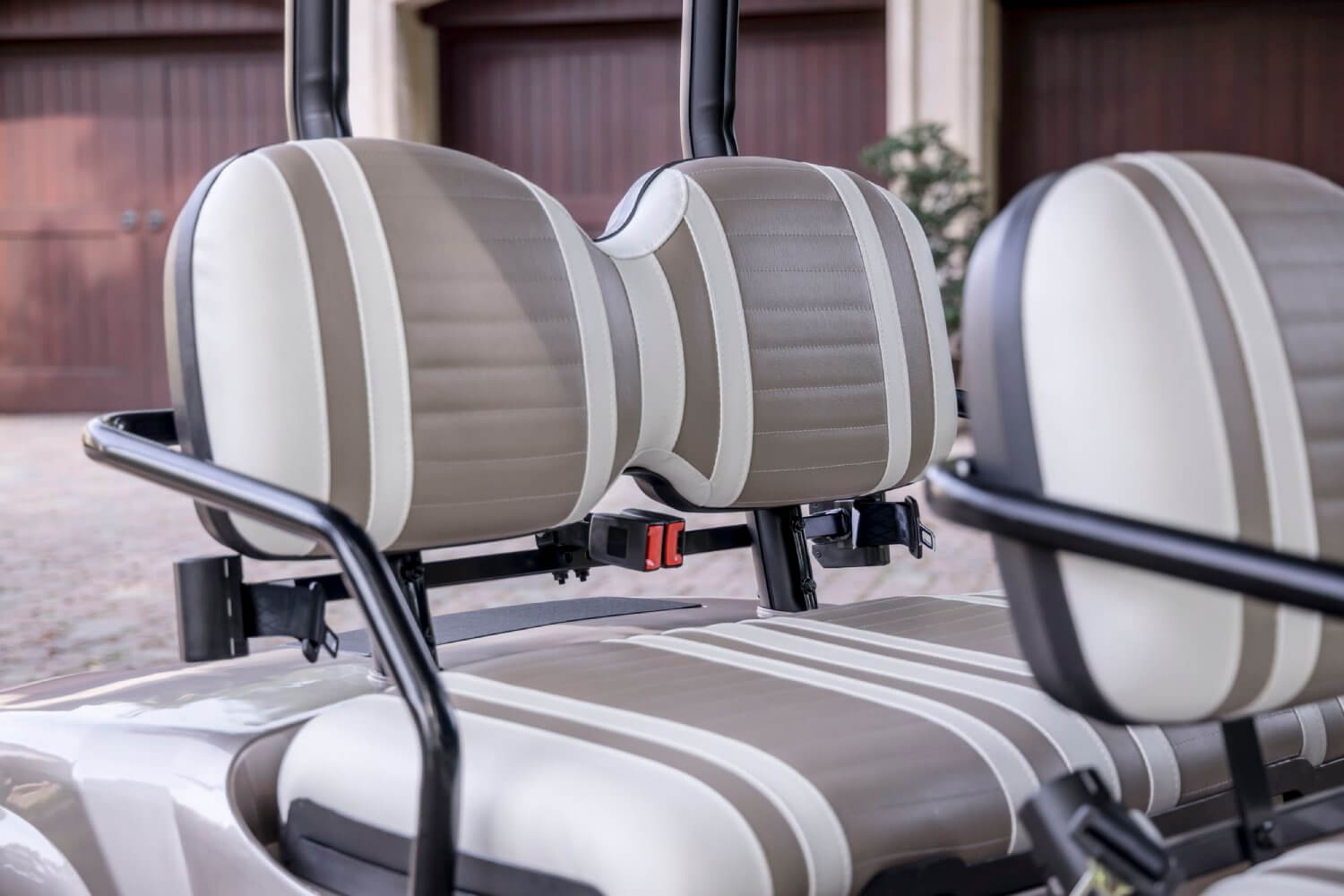

Seats:
Marine Grade Vinyl, Custom Stitched Panel, Single Color, Color Matched with White or Black Accents
